Camshaft Position (CMP) Sensor - 4.0L: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-30 Premium Synthetic Blend Motor Oil XO-5W30-QSP (US); Motorcraft SAE 5W-30 Super Premium Motor Oil CXO-5W30-LSP12 (Canada); or equivalent |
WSS-M2C929-A |

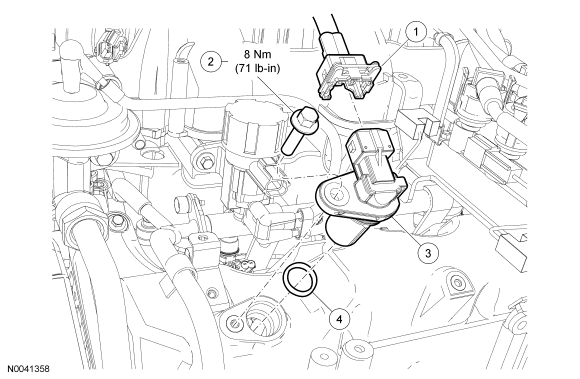

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Camshaft position (CMP) sensor electrical connector (part of 12B637) |
| 2 | W500204 | CMP sensor bolt |
| 3 | 6B288 | CMP sensor |
| 4 | - | CMP sensor O-ring seal |
