Engine Coolant Temperature (ECT) Sensor - 4.0L: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

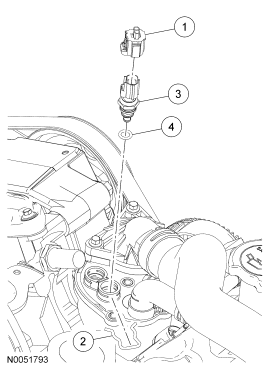

Fig 1: View Of Engine Coolant Temperature (ECT) Sensor - 4.0L
GF0009619Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Engine coolant temperature (ECT) sensor electrical connector (part of 12B637)
2 W706800 ECT sensor clip
3 12A648 ECT sensor
4 210-189-01 ECT sensor O-ring seal
