Front Planetary and One-Way Clutch Assembly: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Sleeve, One-Way Clutch | 307-391 | |
| Installer, One-Way Clutch | 307-392 |

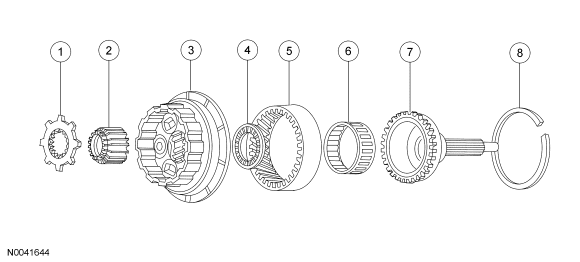

| Item | Part Number | Description |
|---|---|---|
| 1 | 7660 | Coast clutch adapter |
| 2 | 7D063 | Front sun gear |
| 3 | 7B446 | Front planetary gear carrier assembly |
| 4 | 7L495 | No. 2 front planetary thrust bearing |
| 5 | 7A153 | Front ring gear |
| 6 | 7A089 | Front one-way clutch bearing |
| 7 | 7A658 | Center shaft and front one-way clutch assembly |
| 8 | W702037 | Retaining ring |
