Intermediate Brake and Direct Clutch Drum Assembly: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Compressor, Clutch Spring | 307-015 (T65L-77515-A) | |
| Sizer, Piston Seal | 307-335 (T95L-70010-D) |
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

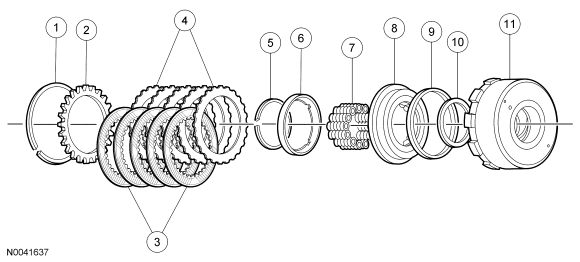

| Item | Part Number | Description |
|---|---|---|
| 1 | E860126/129 | Retaining ring (select fit) |
| 2 | 7B066 | Direct clutch pressure plate |
| 3 | 7B164 | Direct clutch internal plates - friction |
| 4 | 7B442 | Direct clutch internal plates - steel |
| 5 | E860125 | Direct clutch retaining ring |
| 6 | 7A527 | Direct clutch piston spring retainer |
| 7 | 7A480 | Direct clutch piston springs (20 required) |
| 8 | 7A262 | Direct clutch piston |
| 9 | 7A548 | Direct clutch piston outer seal ring |
| 10 | 7D404 | Direct clutch piston inner seal ring |
| 11 | 7D044 | Intermediate brake and direct clutch drum assembly |
