Digital Transmission Range (TR) Sensor: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Alignment Gauge, TR Sensor | 307-351 (T97L-70010-A) |

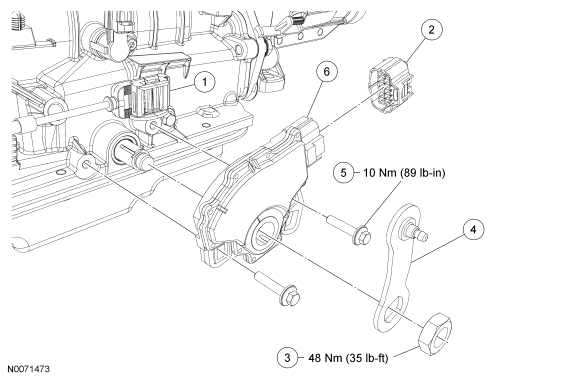

| Item | Part Number | Description |
|---|---|---|
| 1 | 7E395-A | Selector lever cable |
| 2 | - | Digital transmission range (TR) sensor electrical connector |
| 3 | W701271-S | Manual control lever nut |
| 4 | 7A256-A | Manual control lever |
| 5 | N806933-S | Digital TR sensor screw (2 required) |
| 6 | 7F293-A | Digital TR sensor |
