Removal And Installation: Clockspring: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

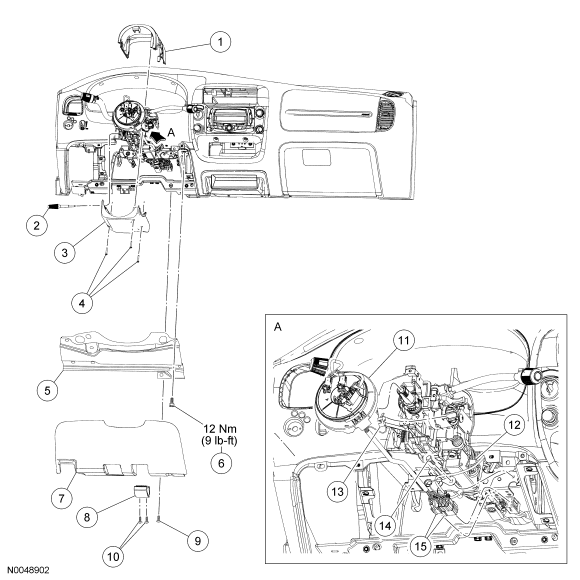

| Item | Part Number | Description |
|---|---|---|
| 1 | 3530 | Upper steering column shroud |
| 2 | 3F609 | Tilt wheel handle and shank |
| 3 | 3530 | Lower steering column shroud |
| 4 | - | Lower steering column shroud screws (3 required) |
| 5 | 017A28 | Lower steering column opening finish panel reinforcement |
| 6 | N807316 | Lower steering column opening finish panel reinforcement bolt (4 required) |
| 7 | 04459 | Lower steering column opening finish panel |
| 8 | 16916 | Hood release handle |
| 9 | - | Lower steering column opening finish panel screw (2 required) |
| 10 | - | Hood release handle screws (2 required) |
| 11 | 14A664 | Clockspring |
| 12 | - | Clockspring wiring harness retainer (part of 14A664) |
| 13 | - | Key-in-ignition warning indicator switch (part of 14A664) |
| 14 | N805375 | Clockspring ground wire bolt |
| 15 | - | Clockspring electrical connectors (2 required) (part of 14A664) |
