Floor Console: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

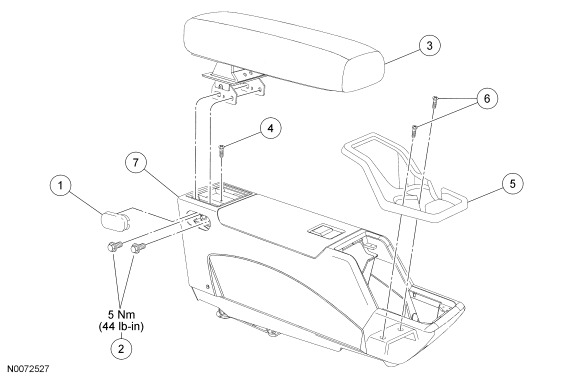

Fig 1: Floor Console Without Speaker Enclosure With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	047A62	Floor console armrest bolt cover
2	W705962	Floor console armrest bolts (4 required)
3	644A22	Floor console armrest
4	-	Floor console rear screw
5	045C22	Beverage tray
6	385754	Floor console front screws (2 required)
7	045A36	Floor console

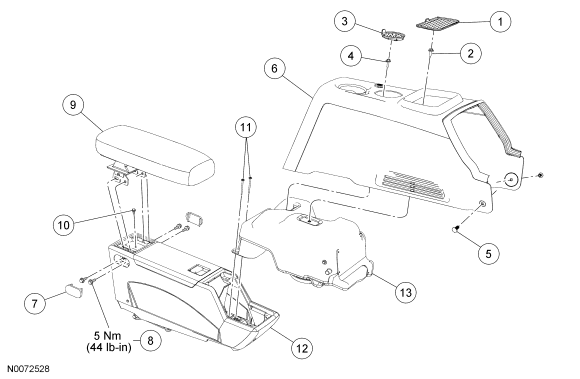

Fig 2: Floor Console With Speaker Enclosure With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	13586B	Floor console storage tray mat
2	W710006	Floor console storage tray screw
3	13586A	Floor console front cup holder mat
4	W710006	Floor console front cup holder screw
5	N807154	Floor console push-pin retainer (2 required)
6	045A36B	Floor console front section
7	047A62	Floor console armrest bolt cover
8	W705962	Floor console armrest bolt (4 required)
9	644A22	Floor console armrest
10	-	Floor console rear screw
11	391010	Floor console front screws (2 required)
12	045A36A	Floor console
13	18C804A	Speaker enclosure
