Speaker Enclosure: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

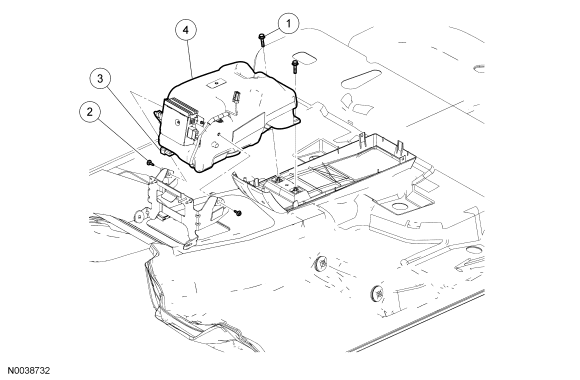

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
Speaker enclosure bolts (2 required) |
| 2 |
W505412 |
Speaker enclosure screws (2 required) |
| 3 |
- |
Speaker enclosure electrical connector (part of 19A170) |
| 4 |
18C804 |
Speaker enclosure |

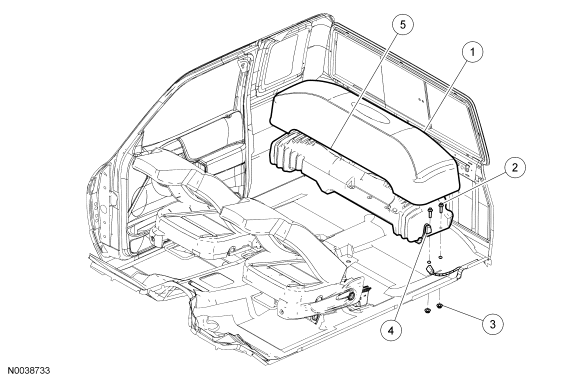

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
19C018 |
Speaker enclosure cover |
| 2 |
W500540 |
Speaker enclosure bolts (4 required) |
| 3 |
- |
Speaker enclosure nuts (4 required) |
| 4 |
- |
Speaker enclosure electrical connector (part of 19A170) |
| 5 |
18978 |
Speaker enclosure |
