Axle Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

SPECIAL TOOLS

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

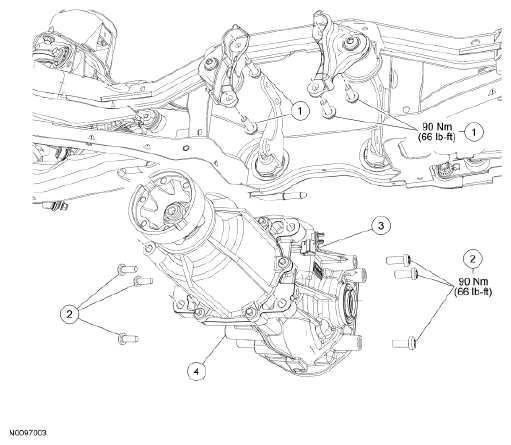

Fig 1: Exploded View Of Axle Assembly With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W713482	Differential housing-to-front insulator bracket bolts (4 required)
2	W709862	Side insulator bracket-to-rear axle differential bolts (6 required)
3	-	Active Torque Coupling (ATC) electrical connector (part of 4000)
4	4000	Rear axle assembly
