OEM Ground Distribution: Grounds: G303

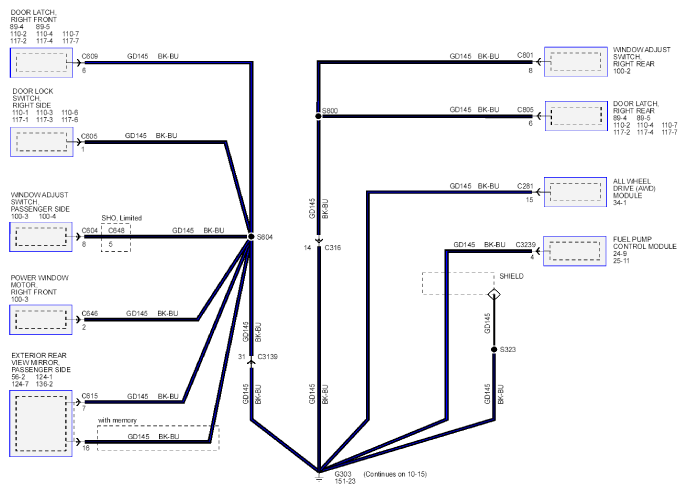

Fig 1: Grounds Circuit Diagram - G303 (1 Of 2)
G07898028Courtesy of FORD MOTOR CO.

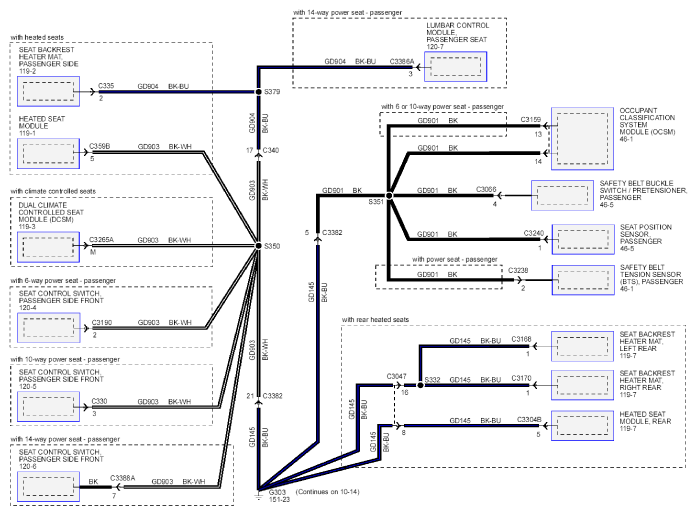

Fig 2: Grounds Circuit Diagram - G303 (2 Of 2)
G07898029Courtesy of FORD MOTOR CO.
