Home › Ford › 2012 › Taurus SE › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transaxle - 6F50/6F55 › Description And Operation › Transaxle Operation › 4th Gear › Notes

4th Gear: Notes

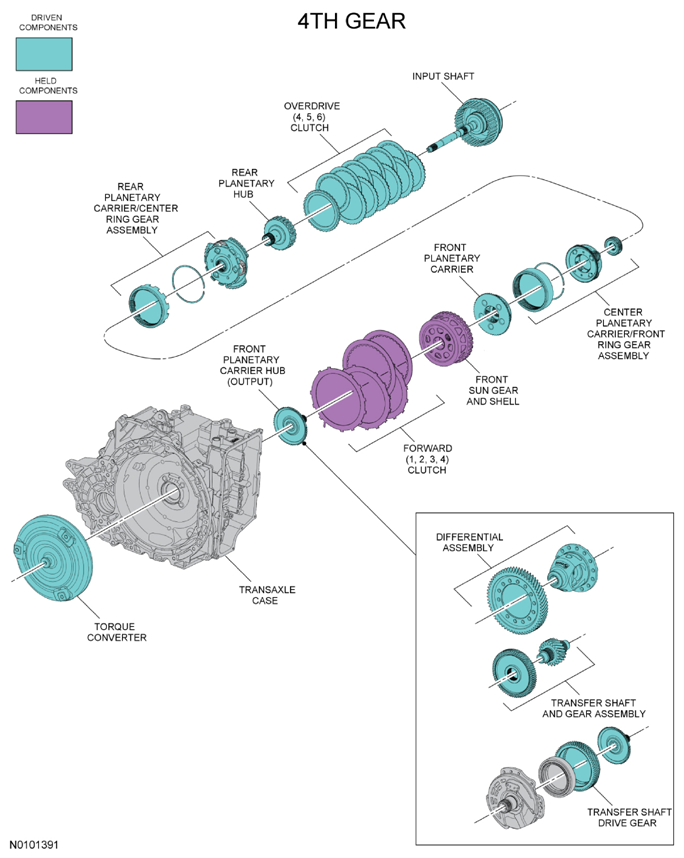

Fig 1: Exploded View Of 4th Gear
G07792856Courtesy of FORD MOTOR CO.
