Reverse Position: Notes

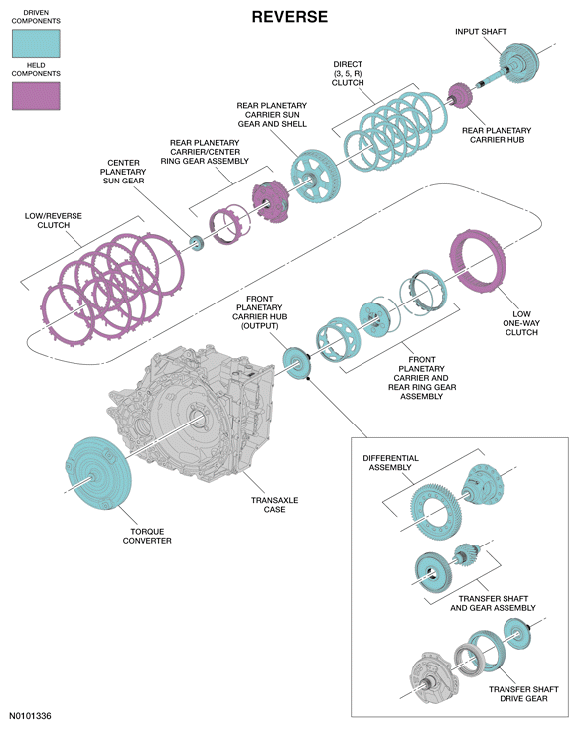

Fig 1: Exploded View Of Transaxle Reverse Position
G06259914Courtesy of FORD MOTOR CO.
