Exploded View: Notes

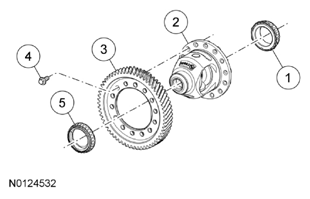

Fig 1: Exploded View Of Differential Gear Assembly

G08001304

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	4221	Bearing
2	7F465	Differential case assembly
3	7F343	Differential ring gear
4	7J286	Bolt - M10 x 25
5	4221	Bearing
