Exploded View: Assembly

Install the park pawl wheel on the transfer shaft.

Fig 1: Installing Park Pawl Wheel
Courtesy of FORD MOTOR CO.

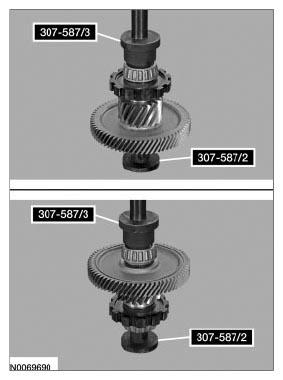

Using the Differential Bearing Installer and Guide 307-587 (307-587/2 and 307-587/3) and a press, install new transfer shaft bearings on the transfer shaft assembly.

Fig 2: Installing Transfer Shaft Bearings On Transfer Shaft Assembly
Courtesy of FORD MOTOR CO.
Select a new transfer shaft shim. For additional information, refer to DIFFERENTIAL SHIM SELECTION .
