Widow adjust switch, passenger side (SL, SEL): Schematic

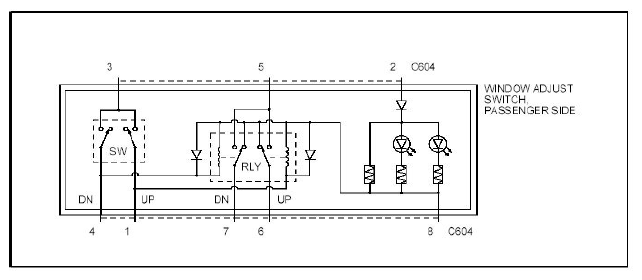

Fig 1: Widow Adjust Switch, Passenger Side (SL, SEL) - Component Testing
G07898313Courtesy of FORD MOTOR CO.
