Wheel Speed Sensor - Rear: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
Motorcraft SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL (US); CXY-75W140-1L (Canada) (vehicles with the trailer towing option or 4:10 ratio)	WSL-M2C192-A

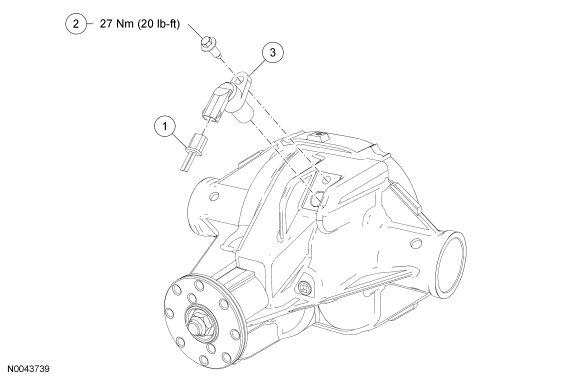

Fig 1: Exploded View Of Rear Wheel Speed Sensor With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Wheel speed sensor electrical connector
2	-	Wheel speed sensor bolt (part of 9E731)
3	9E731	Wheel speed sensor
