Audio System_Navigation: Notes

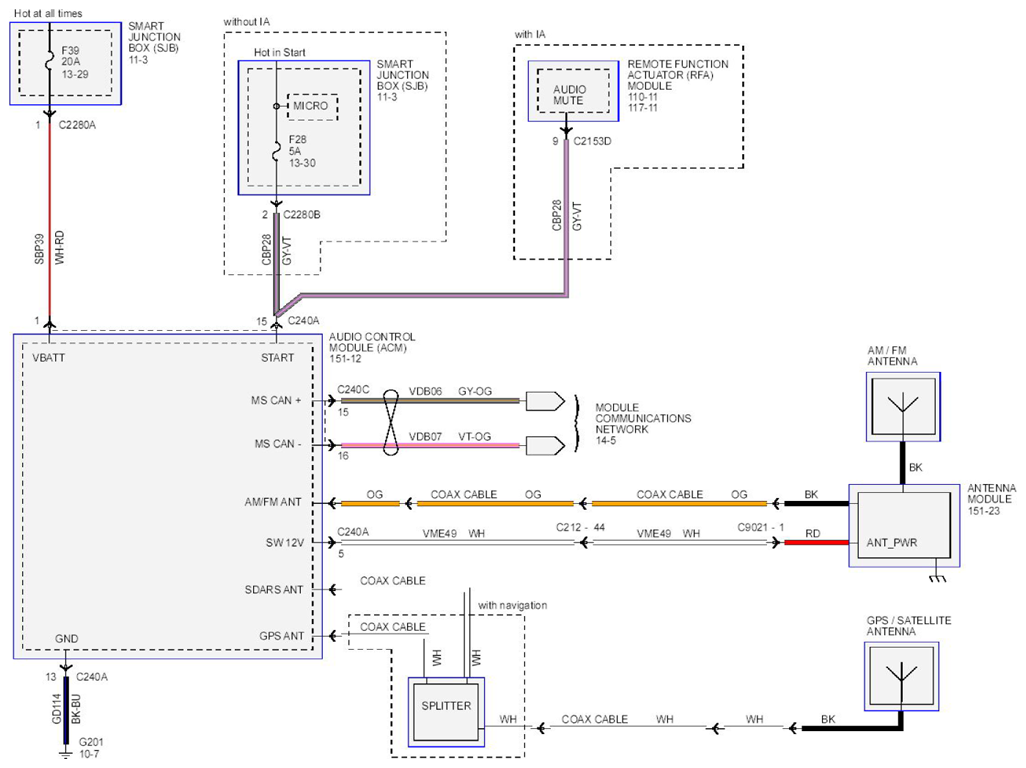

Fig 1: Audio System Navigation Circuit Diagram
G07898272Courtesy of FORD MOTOR CO.
