Driver Seat Module (DSM): Notes

SPECIAL TOOLS

	Heavy-Duty Riveter 501-D011 (D80L-23200-A)
	Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

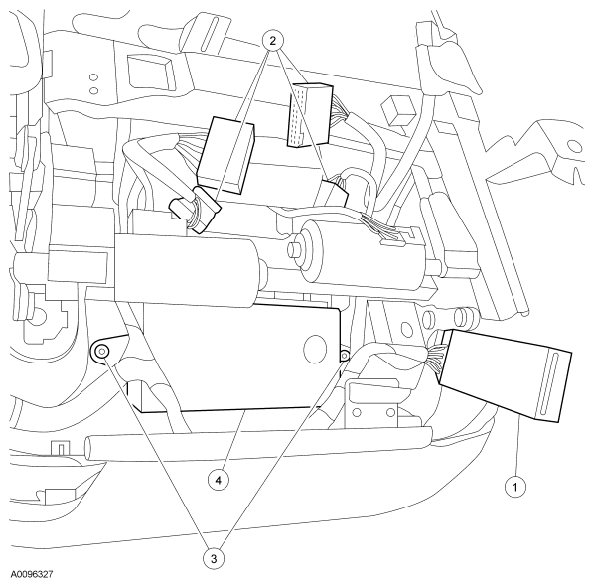

Fig 1: Identifying Driver Seat Module (DSM) Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14C724	Heated seat module (if equipped)
2	-	Driver Seat Module (DSM) electrical connectors (part of 14A699)
3	-	DSM rivets (2 required)
4	14C708	DSM
