Seat - Exploded View, Second Row: Notes

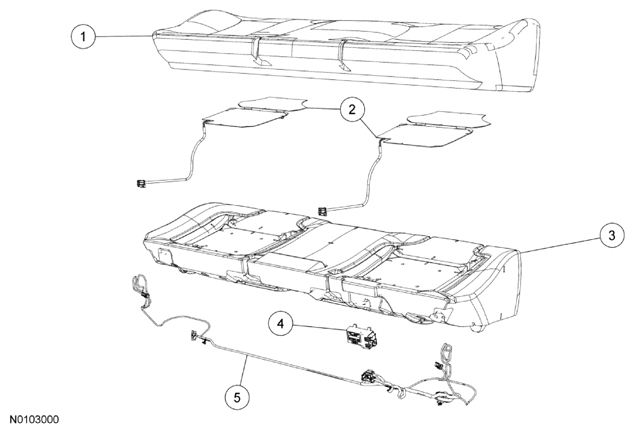

Fig 1: Exploded View Of Seat (Second Row)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	63804	Cushion trim cover
2	14D698	Cushion heater mats (if equipped) (2 required)
3	600A88	Cushion foam pad
4	14C724	Heated seat module
5	19K315	Wire harness
