Removal And Installation: Thermostat: Notes

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft® Specialty Green Engine Coolant VC-10-A2 (US); CVC-10-A (Canada)	WSS-M97B55-A
Motorcraft® Specialty Orange Engine Coolant VC-3-B (US); CVC-3-B (Canada)	WSS-M97B44-D
Thread Sealant with PTFE TA-24	WSK-M2G350-A2

NOTE: 3.5L shown in illustration, 3.5L Gasoline Turbocharged Direct Injection (GTDI) similar.

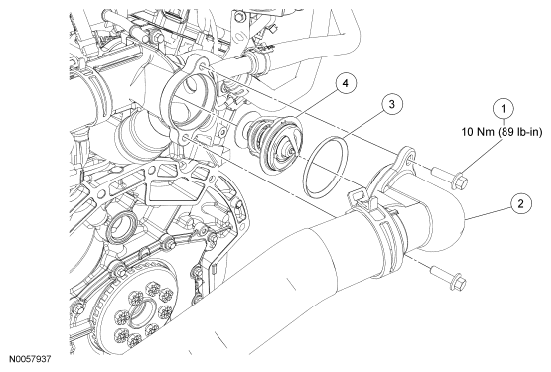

Fig 1: Exploded View Of Thermostat (3.5L) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500014	Thermostat housing bolt (2 required)
2	8594	Thermostat housing
3	-	O-ring seal
4	8575	Thermostat
