Front End Accessory Drive (FEAD) - Exploded View

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

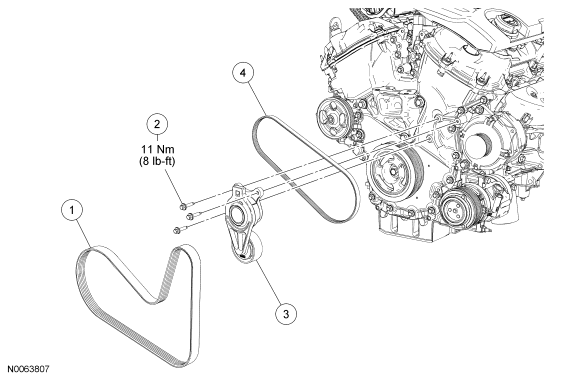

Fig 1: Exploded View Of Front End Accessory Drive (FEAD) With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	8620	Accessory drive belt
2	W503278	Accessory drive belt tensioner bolt (3 required)
3	6B209	Accessory drive belt tensioner
4	6C301	Power steering pump drive belt

For additional information, refer to the appropriate procedures.
