Toe Link: Notes
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

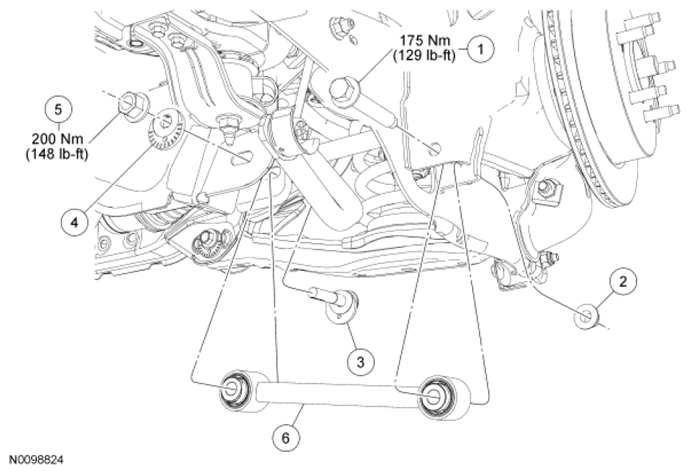

Courtesy of FORD MOTOR CO. PARTS DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
W500766 |
Toe link outboard bolt |
| 2 |
W520215 |
Toe link outboard nut |
| 3 |
5K978 |
Toe link inboard cam bolt |
| 4 |
5K751 |
Toe link adjuster cam |
| 5 |
W711798 |
Toe link inboard nut |
| 6 |
5500 |
Toe link |
