Front Impact Severity Sensor

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

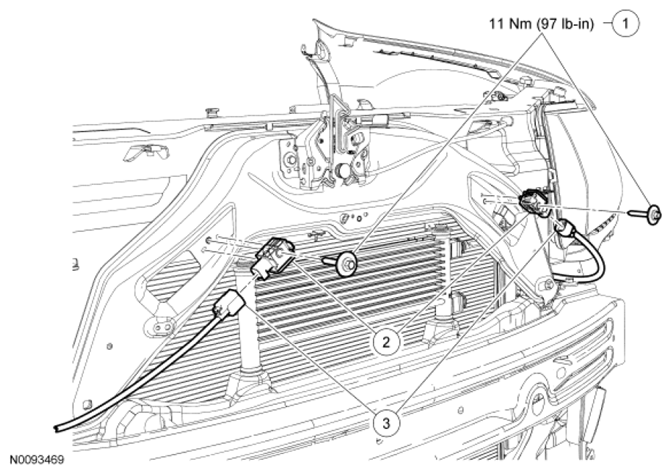

Fig 1: Front Impact Severity Sensor Replacement Components With Torque Specifications
G06504847Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 W712191 LH and RH front impact severity sensor bolts
2 14B004 LH and RH front impact severity sensors
3 - LH and RH front impact severity sensor electrical connectors (part of 14290)
WARNING: If a vehicle has been in a crash, inspect the restraints control module (RCM) and the impact sensor (if equipped) mounting areas for deformation. If damaged, restore the mounting areas to the original production configuration. A new RCM  and sensors must be installed whether or not the air bags have deployed. Failure to follow these instructions may result in serious personal injury or death in a crash.
NOTE: The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition is ON.
NOTE: The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
  1. Depower the SRS  . For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
  2. Remove the front bumper cover. For additional information, refer to BUMPERS .
  3. Disconnect the front impact severity sensor electrical connector.
    4. WARNING: Always tighten the fasteners of the restraints control module (RCM) and impact sensor (if equipped) to the specified torque. Failure to do so may result in incorrect restraint system operation, which increases the risk of personal injury or death in a crash.
    NOTE: Make sure the hood latch bracket and front impact severity sensor mating surfaces are clean and free of foreign material.
    NOTE: Note position of the 2 locator tabs on the front impact severity sensor for correct installation.
  4. Remove the bolt and front impact severity sensor.
    • To install, tighten to 11 Nm (97 lb-in).
  5. To install, reverse the removal procedure.
  6. Repower the SRS  . For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
