Passenger Air Bag Module: Installation

WARNING: This page is about a different car, the 2012 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

Install the passenger air bag module.
- Seat the air bag trim cover clips into the instrument panel.
Connect the passenger air bag module electrical connector.
Install the 2 passenger air bag module bolts.
- Tighten to 11 Nm (97 lb-in).
Position the APIM and install the 4 bolts.

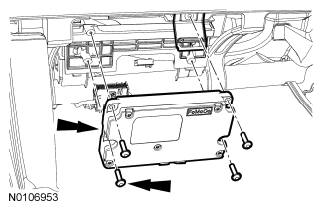

Fig 1: Locating Accessory Protocol Interface Module (APIM)
Courtesy of FORD MOTOR CO.
Repower the SRS. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
