Differential Case: Disassembly

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The Torsen® differential should be replaced as a unit only. Do not attempt to rebuild.

Remove the differential carrier. Refer to DIFFERENTIAL CARRIER .

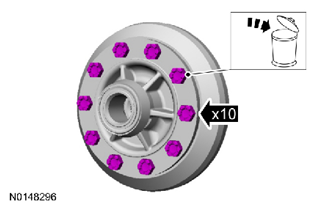

Fig 1: Locating Differential Bolts
Courtesy of FORD MOTOR CO.

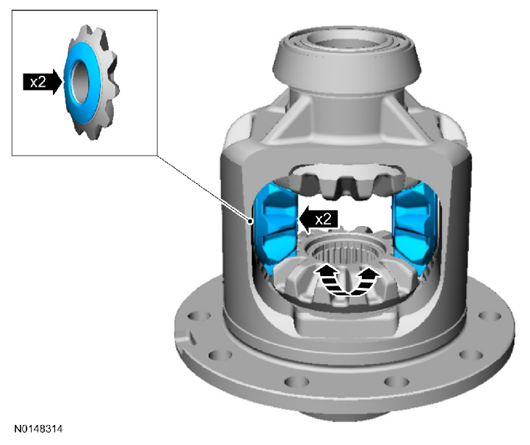

Fig 2: Locating Differential Carrier
Courtesy of FORD MOTOR CO.
Fig 3: Locating Pinion Shaft Bolt
Courtesy of FORD MOTOR CO.

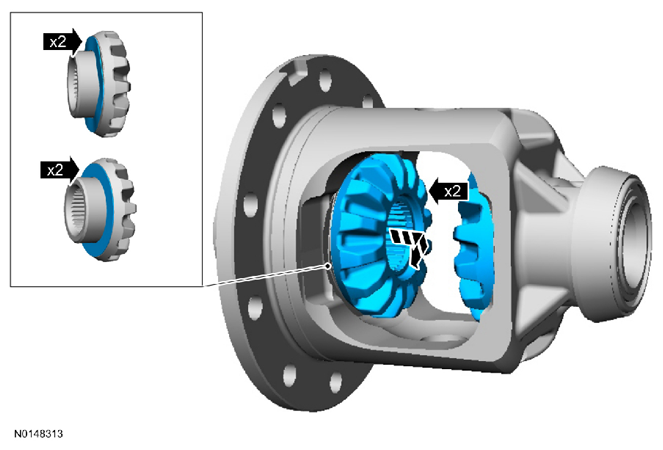

Fig 4: Removing Pinion Shaft
Courtesy of FORD MOTOR CO.

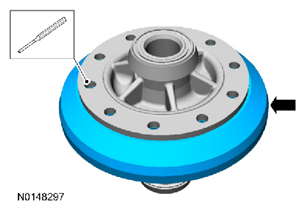

Fig 5: Locating Differential Ring Gear
Courtesy of FORD MOTOR CO.
Fig 6: Removing Differential Ring Gear
Courtesy of FORD MOTOR CO.
General Equipment: Hydraulic Press
General Equipment: Bearing Puller

Fig 7: Locating Bearing Puller
Courtesy of FORD MOTOR CO.
