Passenger Air Bag Module: Notes

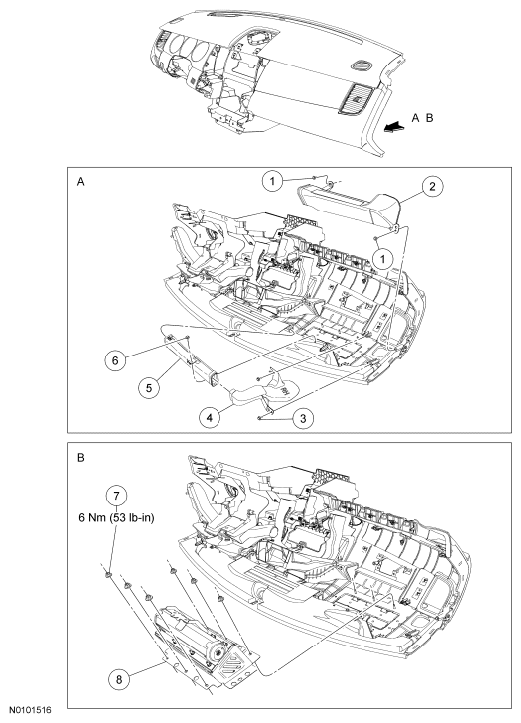

Fig 1: Passenger Air Bag Module Related Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Ventilation duct screws (2 required)
2	19B680	Ventilation duct
3	-	Defroster duct screw (2 required)
4	19B680	Defroster duct
5	19B680	Defroster duct
6	-	Defroster duct screw
7	W505253	Passenger air bag module nut (6 required)
8	044A74	Passenger air bag module
