Automatic Transaxle - 6F50/6F55
›
Description And Operation
›
Mechanical Components and Functions
›
Input Shaft
›
Input Shaft Exploded View
Input Shaft Exploded View

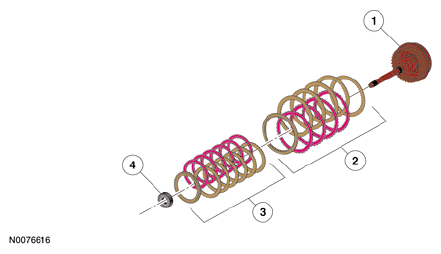

Fig 1: Exploded View Of Input Shaft
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
7G384
Input shaft (part of direct/overdrive clutch assembly)
2
-
Direct clutch
3
-
Overdrive clutch
4
7D063
Center planetary sun gear
