Seat - Front: Notes
NOTE:

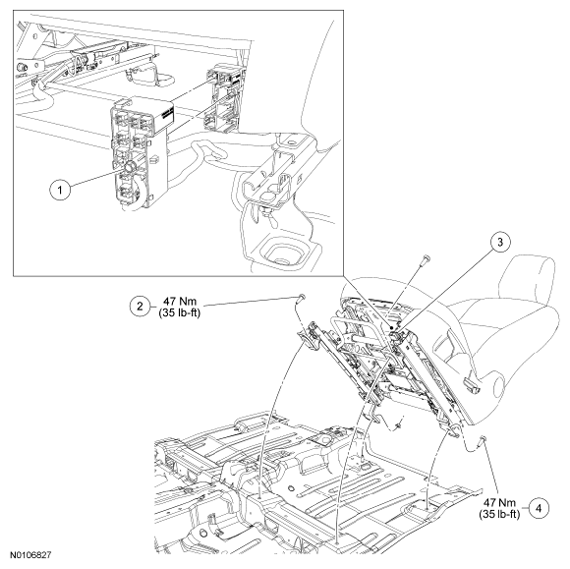

LH shown in illustration, RH similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
Seat electrical bulkhead connector bolt (part of 14A005) |
| 2 |
- |
Seat mounting bolt (3 required) |
| 3 |
- |
Seat electrical bulkhead connector (part of 14A699) |
| 4 |
- |
Seat mounting nut |
