Wheel Speed Sensor - Front: Notes

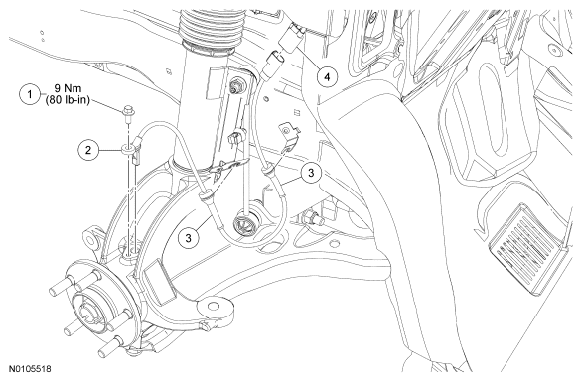

Fig 1: Wheel Speed Sensor Removal And Installation -- Front With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500012	Wheel speed sensor bolt
2	2C204	Wheel speed sensor
3	-	Wheel speed sensor retainer (part of 2C204)
4	-	Wheel speed sensor electrical connector (part of 14290)
