Removal And Installation: Radiator: Notes

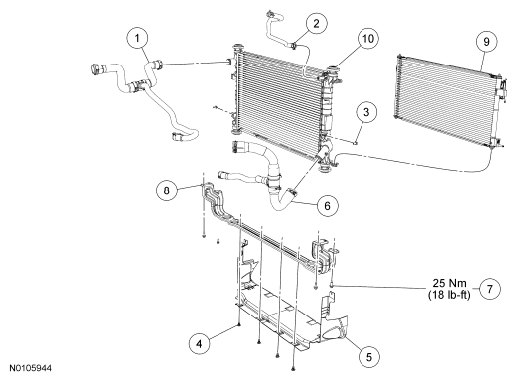

Fig 1: Exploded View Of Radiator With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	8B274	Upper radiator hose
2	8K276	Radiator-to-degas bottle hose
3	W700964	Cooling fan motor and shroud bolt (2 required)
4	W702846	Lower air deflectors pin-type retainer (4 required)
5	8B384	Lower air deflector
6	8B273	Lower radiator hose
7	W703555	Lower radiator support bolt (4 required)
8	8A297	Lower radiator support
9	19712	A/C condenser core
10	8005	Radiator
