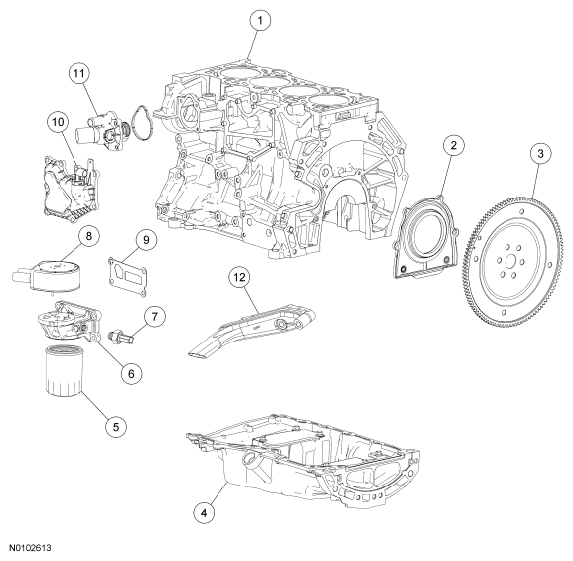

Lower Engine Block (View 1)
| Item | Part Number | Description |
|---|---|---|
| 1 | 6010 | Cylinder block |
| 2 | 6K318 | Crankshaft rear oil seal and retainer |
| 3 | 6477 | Flywheel/flexplate |
| 4 | 6675 | Oil pan |
| 5 | 6714 | Oil filter |
| 6 | 6884 | Oil filter adapter |
| 7 | 9278 | Engine Oil Pressure (EOP) sensor |
| 8 | 6A642 | Oil cooler |
| 9 | 6A636 | Oil filter adapter gasket |
| 10 | 6A785 | Crankcase vent oil separator |
| 11 | 8575 | Thermostat assembly |
| 12 | 6622 | Oil pump screen and pickup tube |
