Disassembly And Assembly Of Subassemblies: Piston: Notes
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada) XO-5W20-QSP (US); CXO-5W20-LSP12 (Canada) |
WSS-M2C945-A |

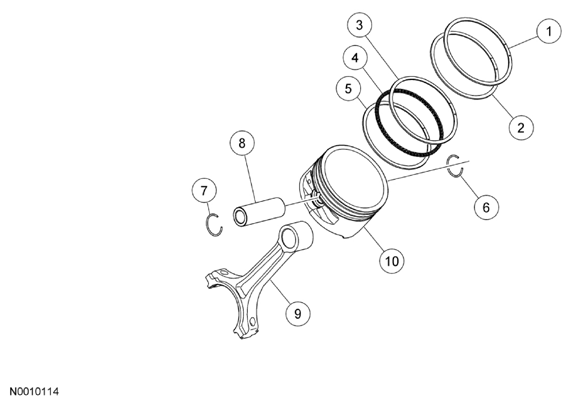

| Item | Part Number | Description |
|---|---|---|
| 1 | 6150 | Piston compression upper ring |
| 2 | 6152 | Piston compression lower ring |
| 3 | 6159 | Piston oil control upper segment ring |
| 4 | 6161 | Piston oil control spacer |
| 5 | 6159 | Piston oil control lower segment ring |
| 6 | 6140 | Piston pin retainer |
| 7 | 6140 | Piston pin retainer |
| 8 | 6135 | Piston pin |
| 9 | 6200 | Connecting rod |
| 10 | 6110 | Piston |
