Engine Front Cover: Notes
SPECIAL TOOLS
| Aligner, Crankshaft Sensor 303-1417 |
|
| Installer, Camshaft Front Oil Seal 303-096 (T74P-6150-A) |
|
| Remover, Oil Seal 303-409 (T92C-6700-CH) |
GENERAL EQUIPMENT
| 6 mm x 18 mm bolt |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada) XO-5W20-QSP (US); CXO-5W20-LSP12 (Canada) |
WSS-M2C945-A |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |

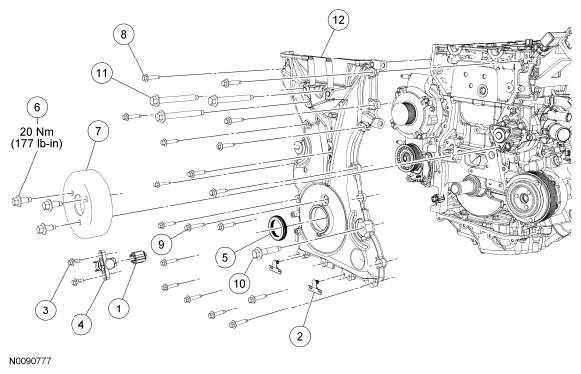

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Crankshaft Position (CKP) sensor electrical connector (part of 12A690) |
| 2 | 13A506 | Wiring harness retainer (part of 12A690) (2 required) |
| 3 | W701219 | CKP sensor bolt (2 required) |
| 4 | 6C315 | CKP sensor |
| 5 | 6700 | Crankshaft front seal |
| 6 | W500221 | Coolant pump pulley bolt (3 required) |
| 7 | 8509 | Coolant pump pulley |
| 8 | W500215 | Engine front cover bolt (17 required) |
| 9 | W500300 | Engine front cover bolt |
| 10 | W500320 | Engine front cover bolt |
| 11 | W500328 | Engine front cover bolt (3 required) |
| 12 | 6019 | Engine front cover |
