Oil Pump

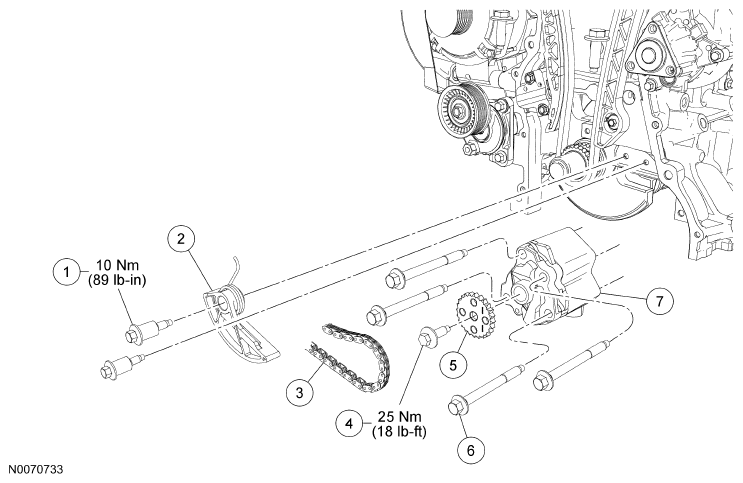

Fig 1: Exploded View Of Oil Pump With Torque Specifications
G06095000Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W703651 Oil pump drive chain tensioner shoulder bolt (2 required)
2 6C271 Oil pump drive chain tensioner
3 6A895 Oil pump drive chain
4 W704397 Oil pump sprocket bolt
5 6652 Oil pump sprocket
6 W703647 Oil pump bolt (4 required)
7 6600 Oil pump
  1. For additional information, refer to the procedures in this information.
