Timing Drive Components: Removal

NOTE: Do not loosen or remove the crankshaft pulley bolt without first installing the special tools as instructed in this procedure. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction, using diamond washers between the flange faces on each part. For that reason, the crankshaft sprocket is also unfastened if the pulley bolt is loosened. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the engine front cover. For additional information, refer to ENGINE FRONT COVER  .
  3. Compress the timing chain tensioner in the following sequence.
    1. Using a small pick, release and hold the ratchet mechanism.
    2. While holding the ratchet mechanism in the released position, compress the tensioner by pushing the timing chain arm toward the tensioner.
    3. Insert a paper clip into the hole to retain the tensioner.

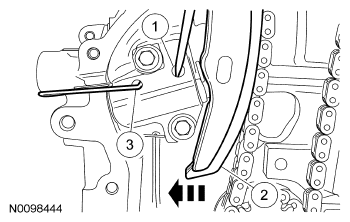

      Fig 1: Compressing Timing Chain Tensioner Using Small Pick
      G06094892Courtesy of FORD MOTOR CO.
  4. Remove the 2 bolts and the timing chain tensioner.

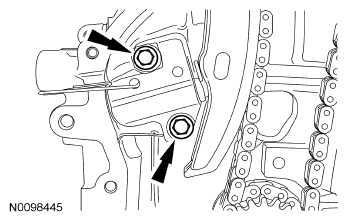

    Fig 2: Locating Timing Chain Tensioner Bolts
    G06094893Courtesy of FORD MOTOR CO.
  5. Remove the RH timing chain guide.
    Fig 3: Locating RH Timing Chain Guide
    G06094894Courtesy of FORD MOTOR CO.
  6. Remove the timing chain.
    Fig 4: Locating Timing Chain
    G06181588Courtesy of FORD MOTOR CO.
  7. Remove the bolts and the LH timing chain guide.
    Fig 5: Locating LH Timing Chain Guide Bolts
    G06094896Courtesy of FORD MOTOR CO.
  8. NOTE: Do not rely on the Camshaft Alignment Plate to prevent camshaft rotation. Damage to the tool or the camshaft can occur.
    NOTE: Intake camshaft drive gear shown in illustration, exhaust camshaft drive gear similar.
  9. Remove the bolts and the camshaft drive gears.
    • Use the flats on the camshaft to prevent camshaft rotation.
      Fig 6: Locating Camshaft Drive Gear And Bolt
      G06328698Courtesy of FORD MOTOR CO.
