Rear Ho2S Monitor

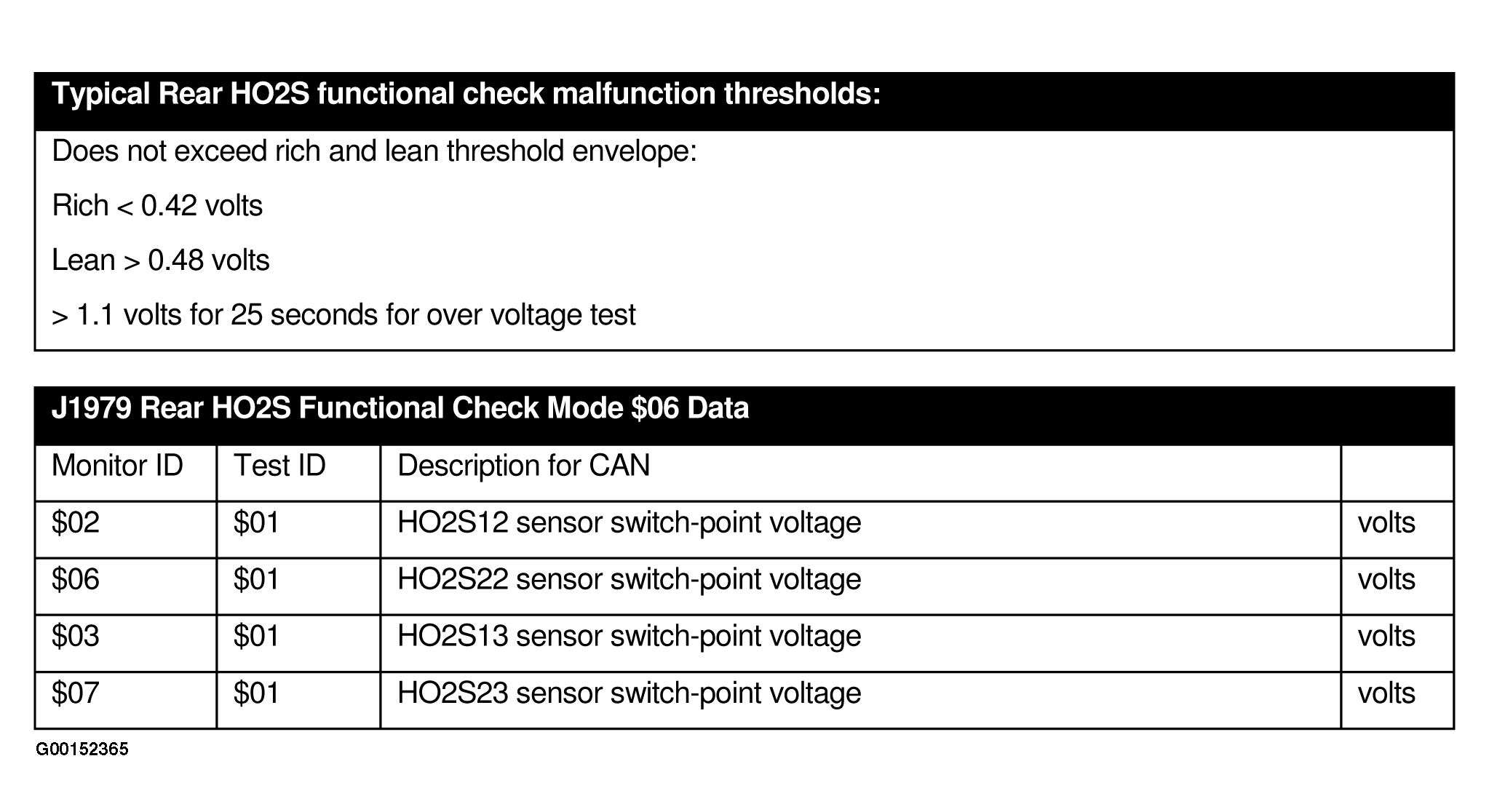

Fig 1: Mode $06 Data For Rear HO2S Functional Check Monitor
G00152365Courtesy of FORD MOTOR CO.

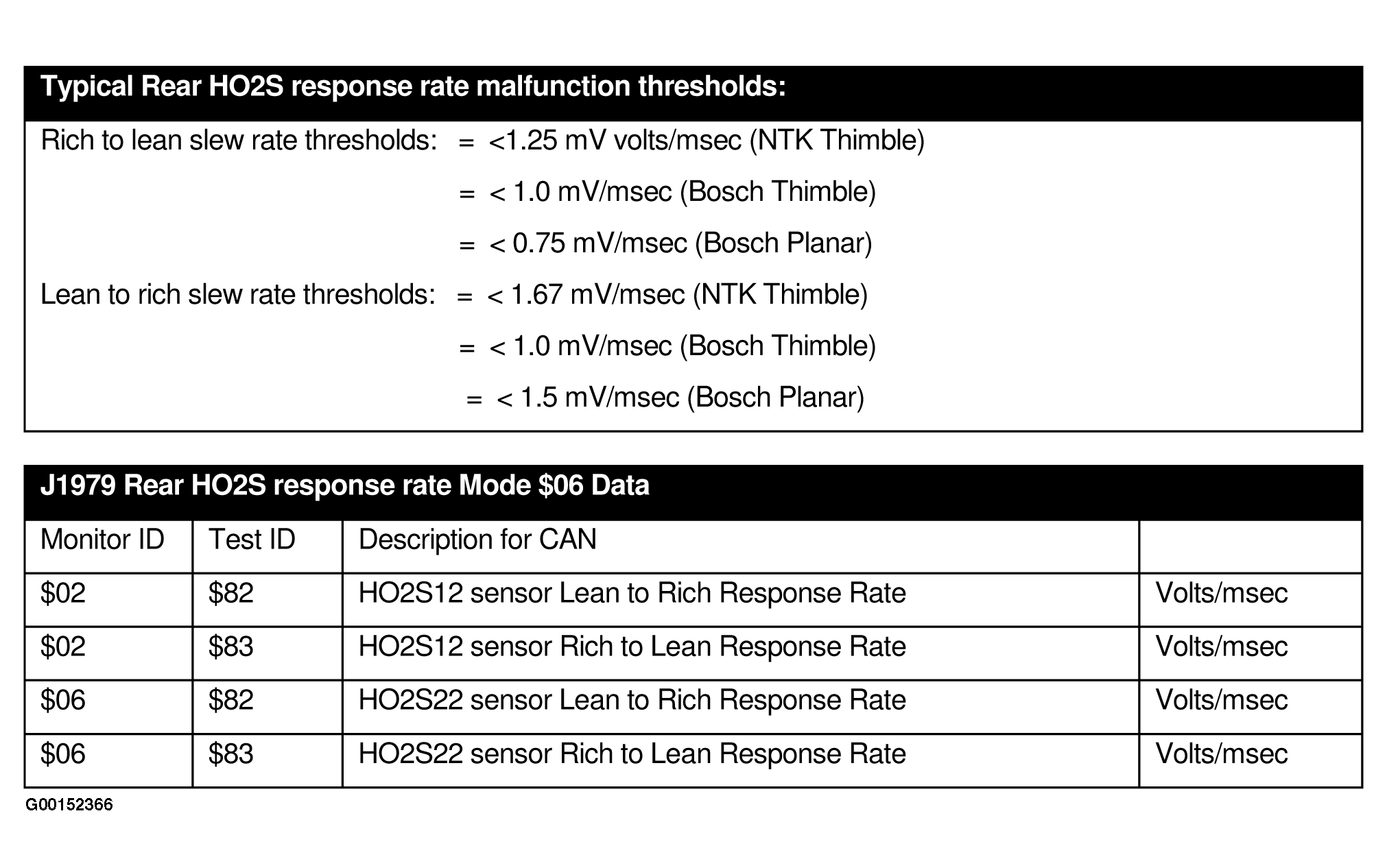

Fig 2: Mode $06 Data For Rear HO2S Response Rate Monitor
G00152366Courtesy of FORD MOTOR CO.
