Compressor to Condenser Discharge Line: Notes

MATERIAL SPECIFICATIONS

Item	Specification
PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D	WSH-M1C231-B

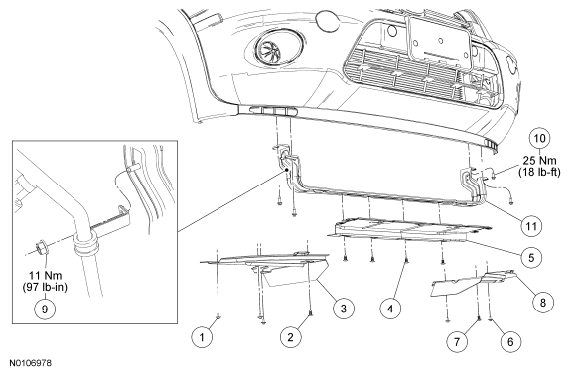

Fig 1: Exploded View Of Compressor To Condenser Discharge Line (1 Of 2) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	RH lower splash shield screw (3 required)
2	W702846	RH lower splash shied pin-type retainer
3	16A315	RH lower splash shield
4	W702846	Lower radiator air deflector pin-type retainer (4 required)
5	8327	Lower radiator air deflector
6	-	LH lower splash shield screw (2 required)
7	W702846	LH lower splash shield pin-type retainer
8	16A315	LH lower splash shield
9	W700101	Condenser-to-evaporator line bracket nut
10	W503930	Lower radiator support bolt (4 required)
11	16138	Lower radiator support

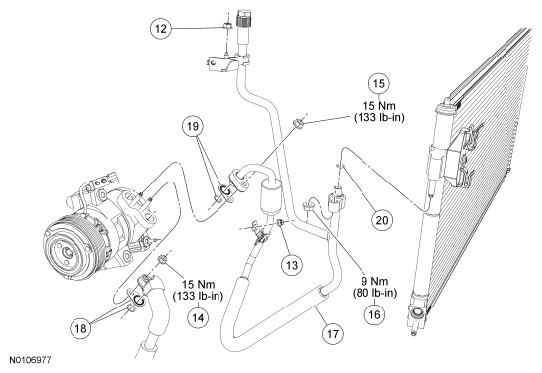

Fig 2: Exploded View Of Compressor To Condenser Discharge Line (2 Of 2) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
12	W700101	High-pressure service gauge port valve extension bracket nut
13	N804495	Compressor-to-condenser discharge line bracket nut
14	W520413	A/C compressor suction fitting nut
15	W520413	A/C compressor discharge fitting nut
16	W520413	Condenser inlet fitting nut
17	19972	Compressor-to-condenser discharge line
18	19B596	O-ring seal and gasket seal kit
19	19B596	O-ring seal and gasket seal kit
20	19E889	O-ring seal
