OEM Ground Distribution: Grounds: G200

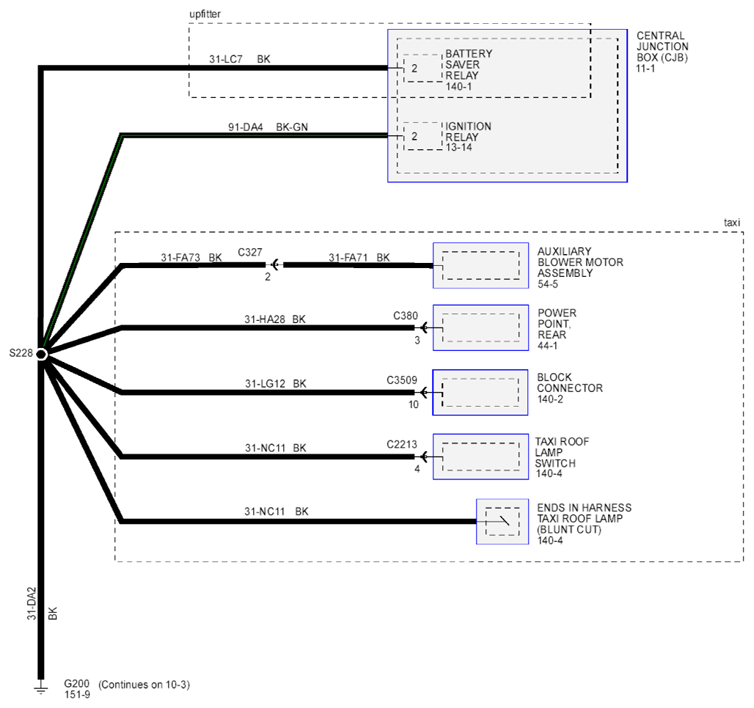

Fig 1: Grounds Circuit Diagram - G200
G07909294Courtesy of FORD MOTOR CO.
