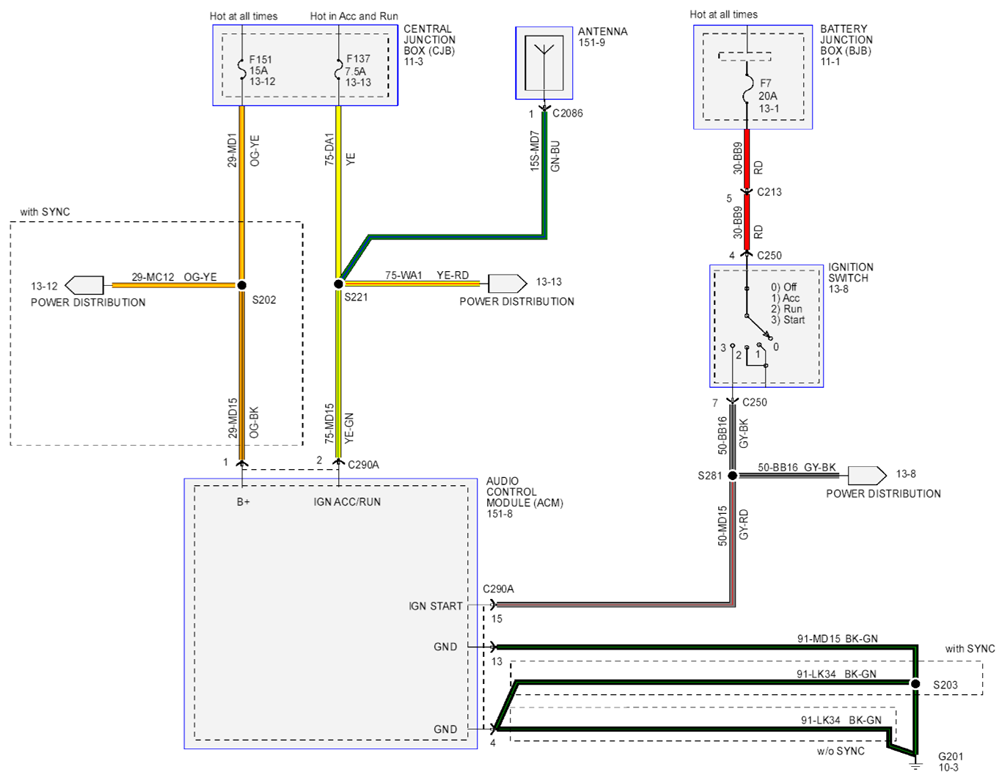

Fig 1: Audio System Circuit Diagram - Late Production (1 Of 2)
Courtesy of FORD MOTOR CO.

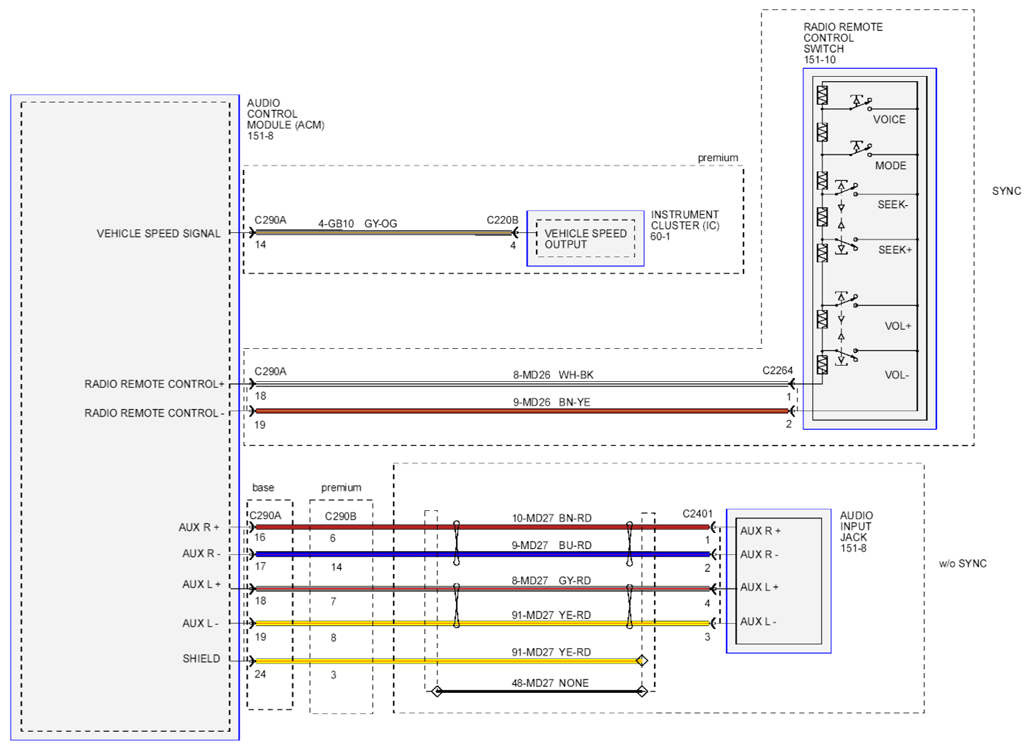

Fig 2: Audio System Circuit Diagram - Late Production (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
