2012
›
Transit Connect Base, Van Cargo
›
Repair and Diagnosis
›
Quick Lookups
›
Wiring Diagrams
›
OEM Wiring Diagrams
›
Charging System
Charging System

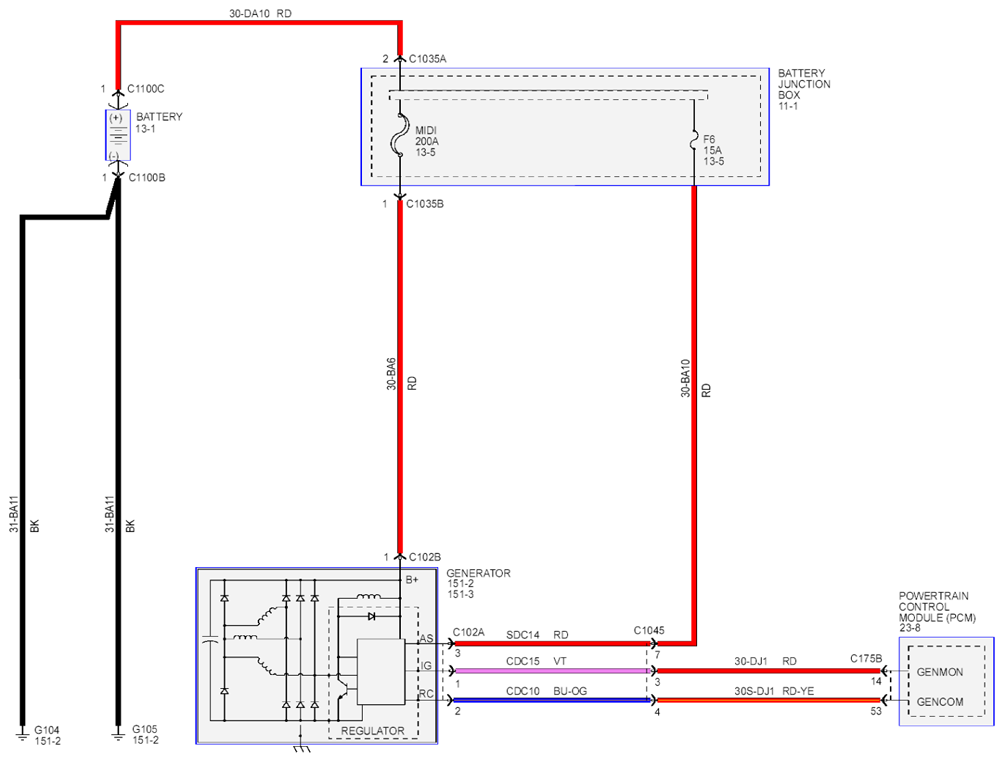

Fig 1: Charging System Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
