Cruise Control

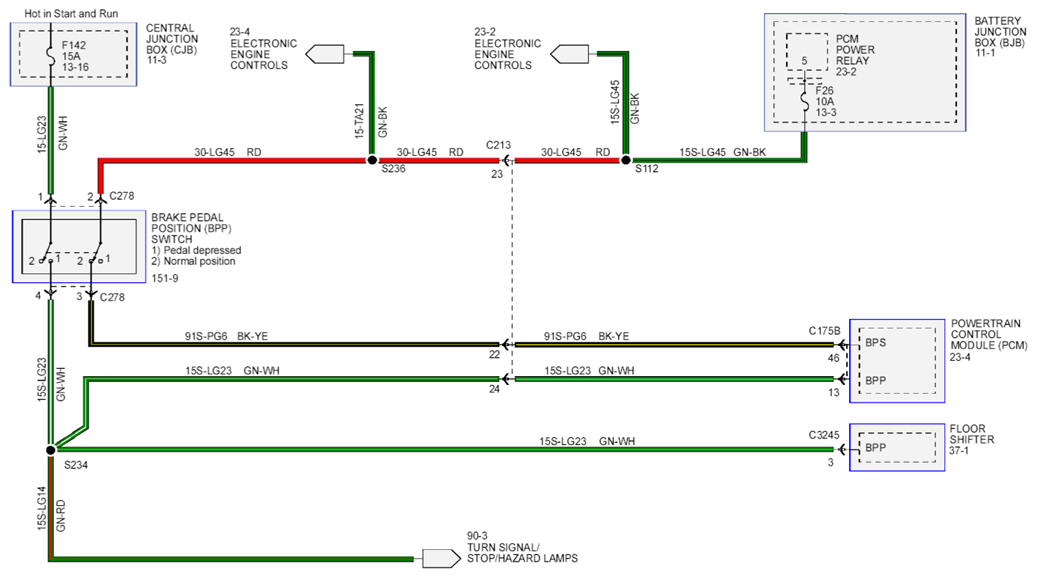

Fig 1: Cruise Control Circuit Diagram (1 Of 3)
G07909237Courtesy of FORD MOTOR CO.

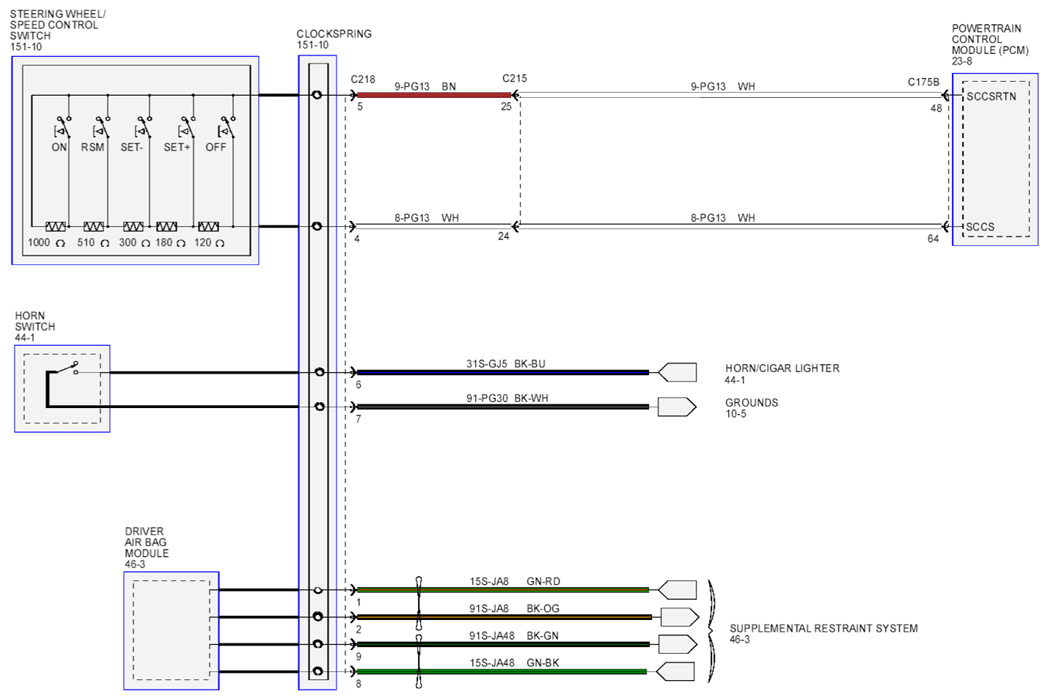

Fig 2: Cruise Control Circuit Diagram (2 Of 3)
G07909238Courtesy of FORD MOTOR CO.

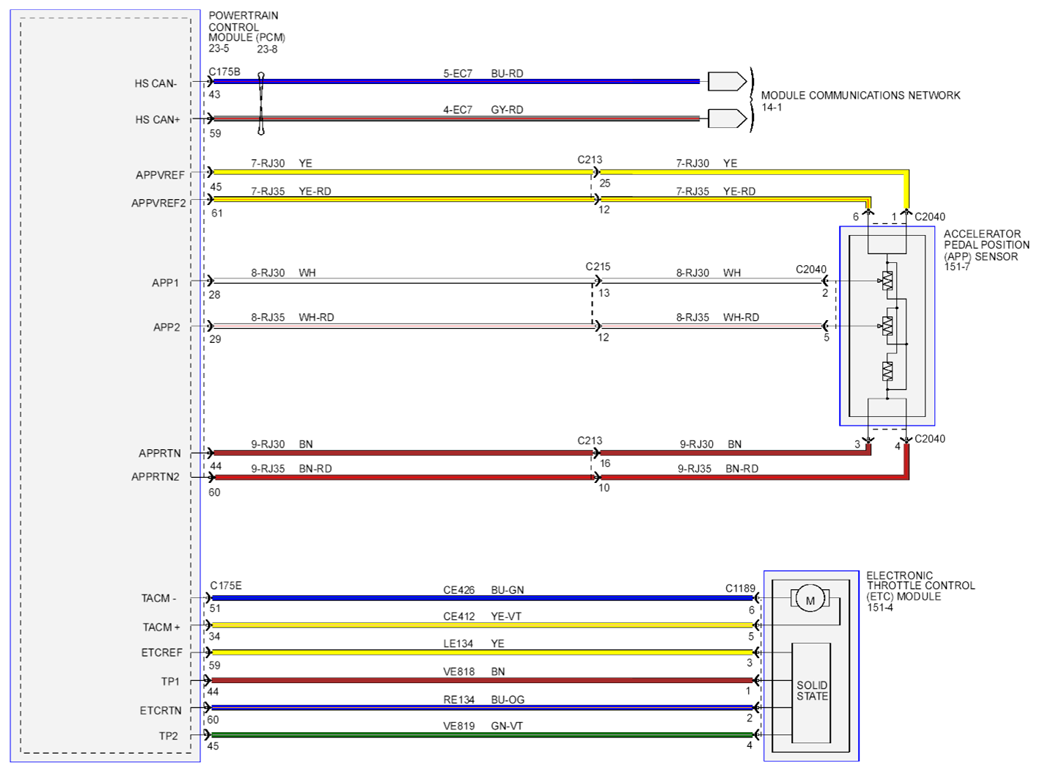

Fig 3: Cruise Control Circuit Diagram (3 Of 3)
G07909239Courtesy of FORD MOTOR CO.
