Ford
›
2012
›
Transit Connect Base, Van Cargo
›
Repair and Diagnosis
›
Quick Lookups
›
Wiring Diagrams
›
OEM Wiring Diagrams
›
Multifunction Control Modules
›
With Manual Door Locks
With Manual Door Locks

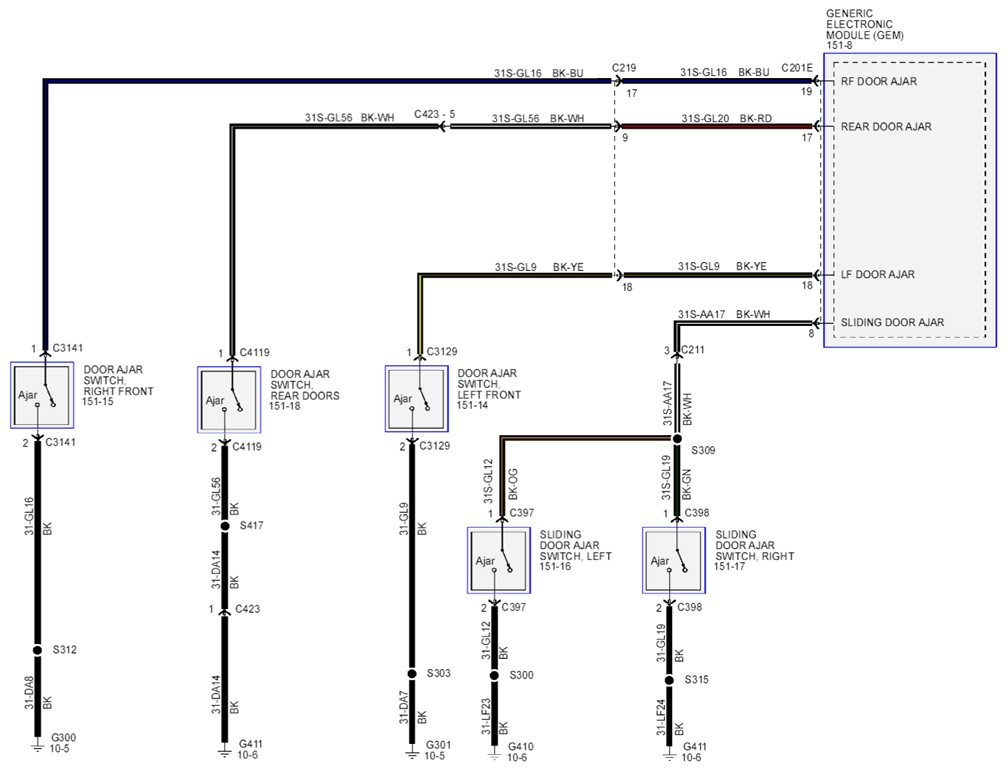

Fig 1: Multifunction Control Modules Circuit Diagram - With Manual Door Locks
