Ford
›
2012
›
Transit Connect Base, Van Cargo
›
Repair and Diagnosis
›
Quick Lookups
›
Wiring Diagrams
›
OEM Wiring Diagrams
›
Multifunction Control Modules
›
With Power Door Locks
With Power Door Locks

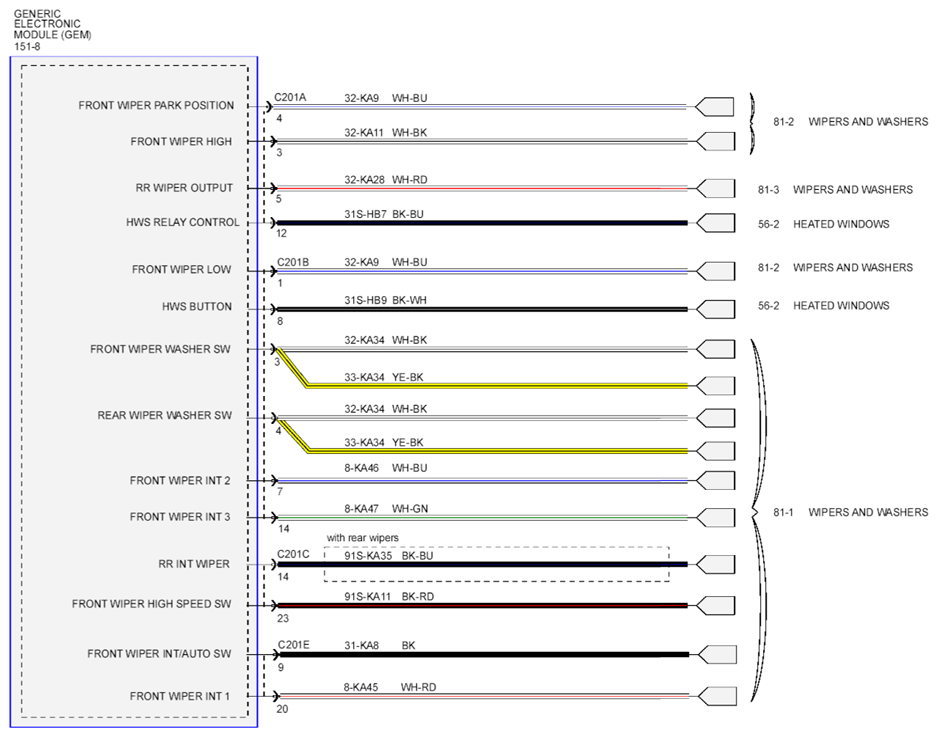

Fig 1: Multifunction Control Modules Circuit Diagram - With Power Door Locks (1 Of 4)
Courtesy of FORD MOTOR CO.

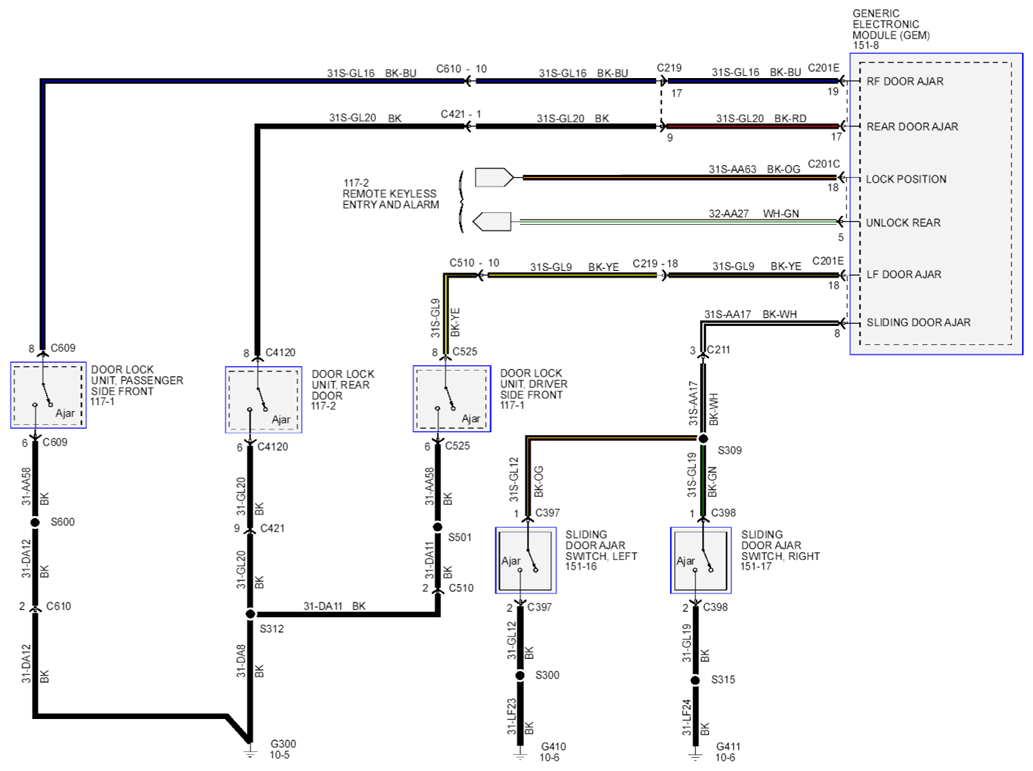

Fig 2: Multifunction Control Modules Circuit Diagram - With Power Door Locks (2 Of 4)
Courtesy of FORD MOTOR CO.

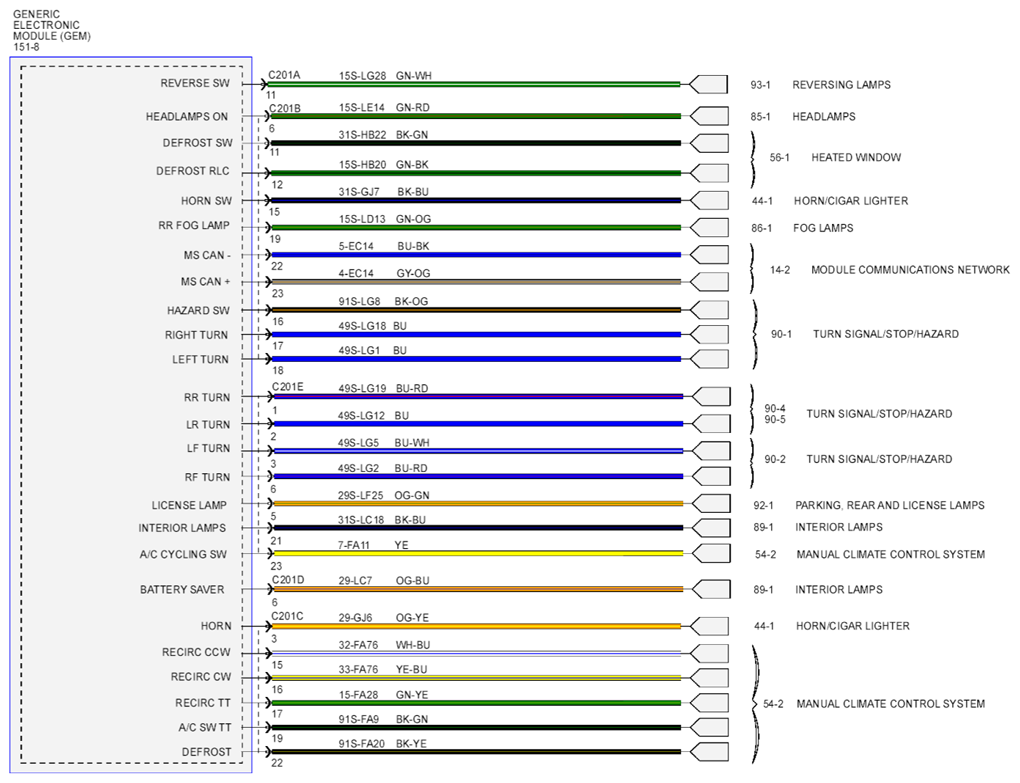

Fig 3: Multifunction Control Modules Circuit Diagram - With Power Door Locks (3 Of 4)
Courtesy of FORD MOTOR CO.

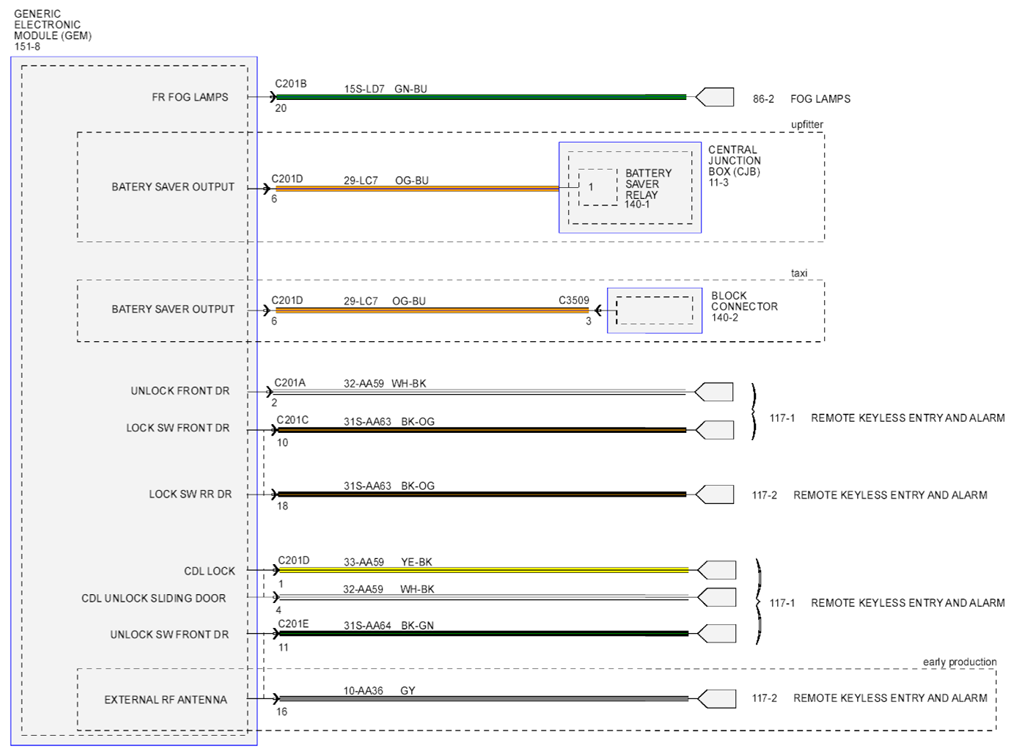

Fig 4: Multifunction Control Modules Circuit Diagram - With Power Door Locks (4 Of 4)
Courtesy of FORD MOTOR CO.
