Ford
›
2012
›
Transit Connect Base, Van Cargo
›
Repair and Diagnosis
›
Quick Lookups
›
Wiring Diagrams
›
OEM Wiring Diagrams
›
Transmission Controls
Transmission Controls

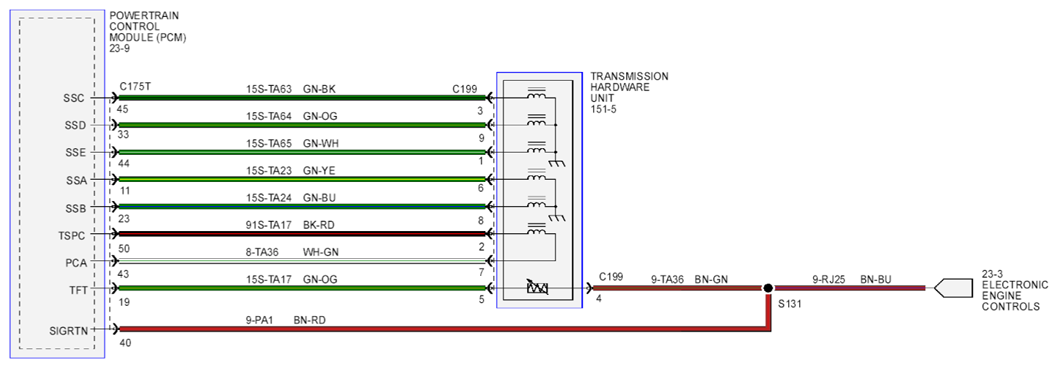

Fig 1: Transmission Controls Circuit Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

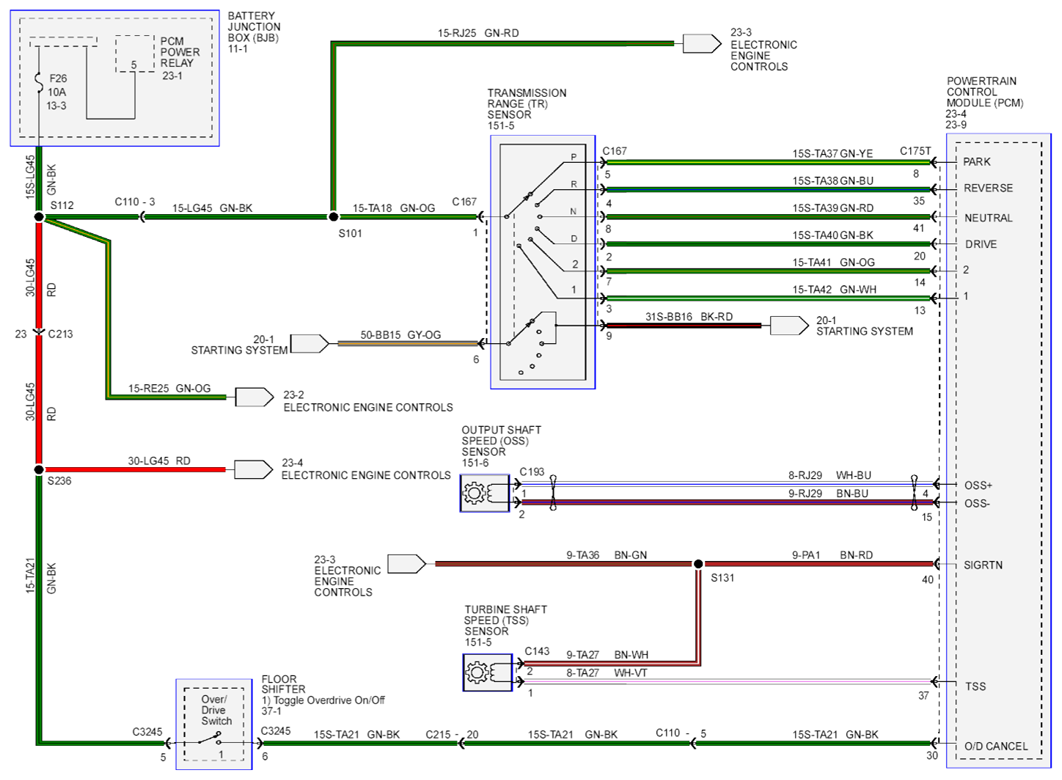

Fig 2: Transmission Controls Circuit Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
