Wipers and Washers: Notes

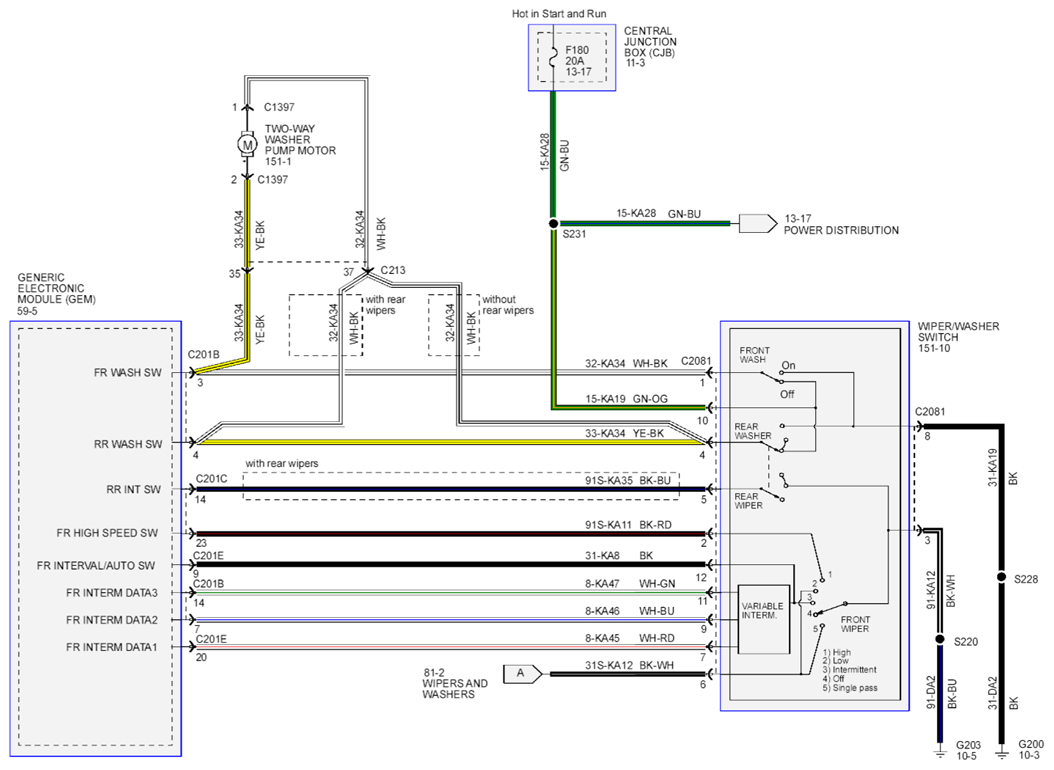

Fig 1: Wipers And Washers Circuit Diagram (1 Of 2)
G07909269Courtesy of FORD MOTOR CO.

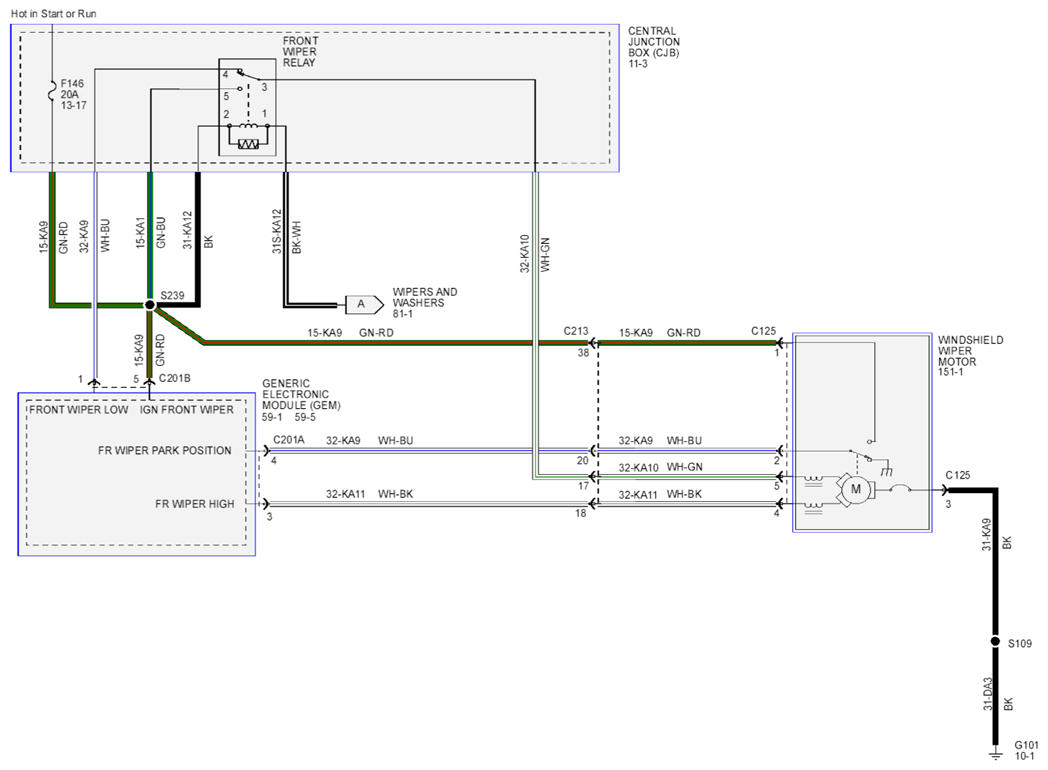

Fig 2: Wipers And Washers Circuit Diagram (2 Of 2)
G07909270Courtesy of FORD MOTOR CO.
