Removal And Installation: Clockspring: Notes

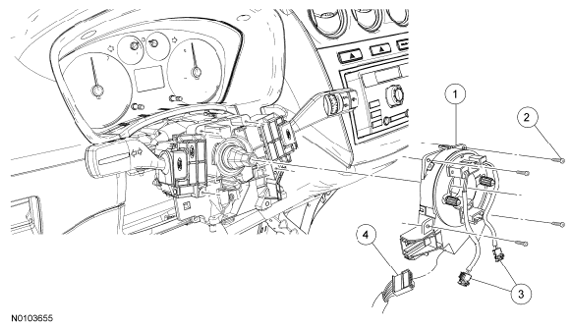

Fig 1: Identifying Clockspring Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A664	Clockspring
2	W506942	Clockspring screw (4 required)
3	-	Driver air bag module electrical connectors (part of 14A664)
4	-	Clockspring electrical connector (part of 14401)
