Multifunction Control Modules: Notes

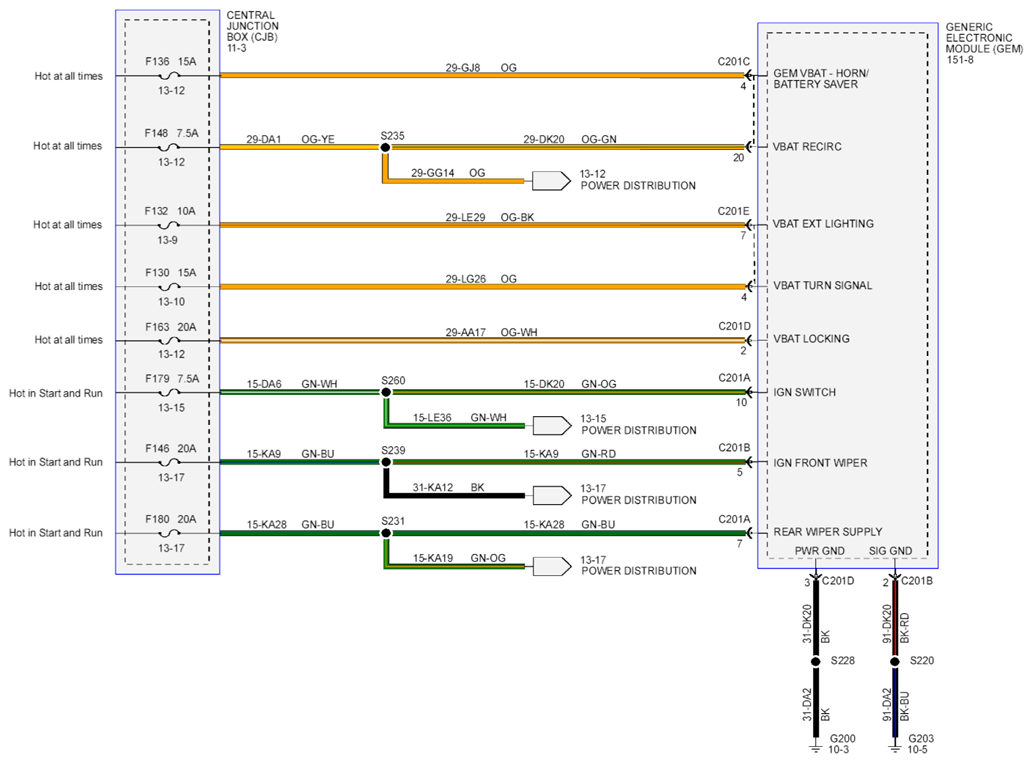

Fig 1: Multifunction Control Modules Circuit Diagram
G07909259Courtesy of FORD MOTOR CO.
