Battery Energy Control Module Wiring Harness
Battery Energy Control Module Wiring Harness

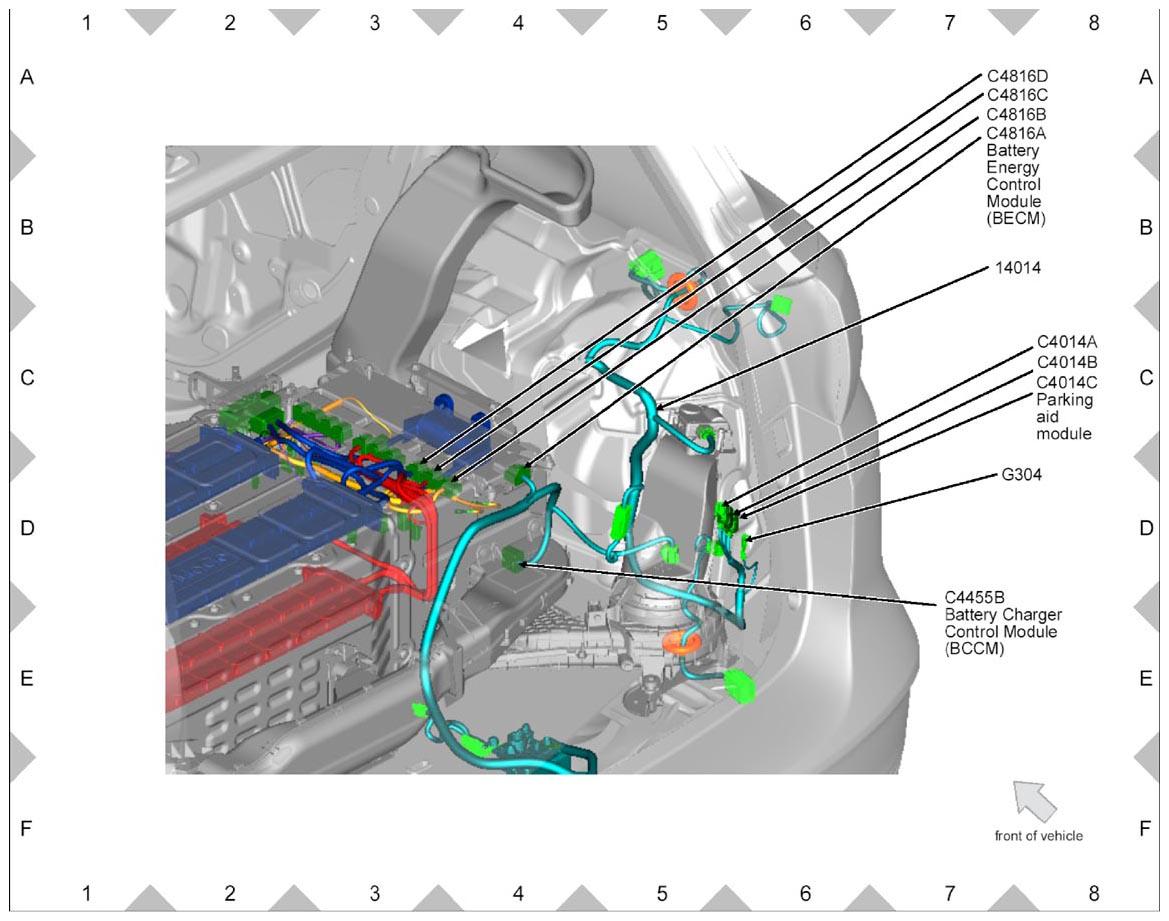

Fig 1: Battery Energy Control Module Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
