Blower Motor Control Module
Blower Motor Control Module

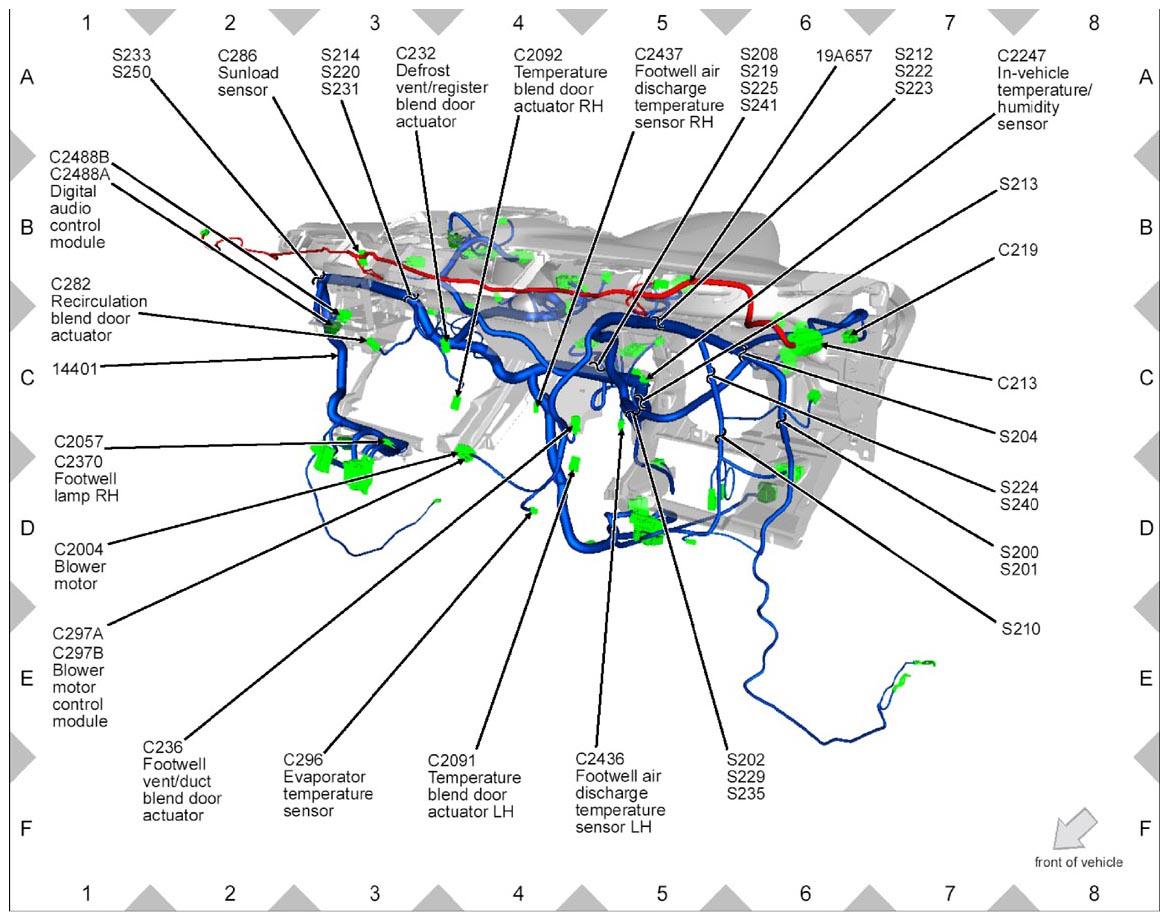

Fig 1: Blower Motor Control Module Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
