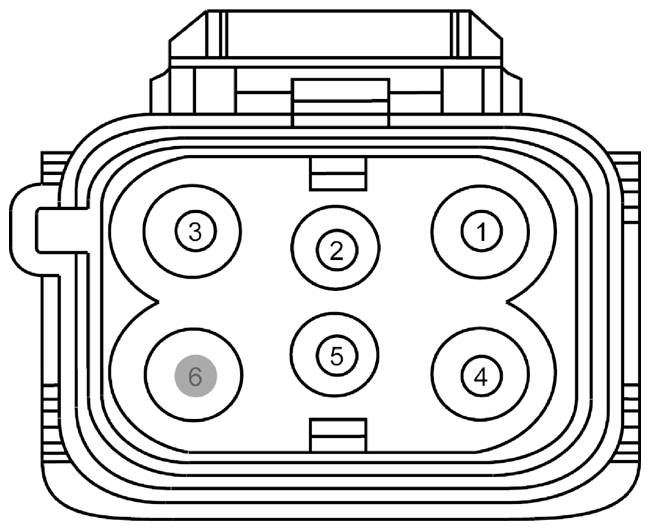

Battery Charger Control Module (BCCM) Connector End View (C4455B)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
RYB57 (GN-YE) |
10 |
GROUND |
PHEV |
| 2 |
CYB56 (WH-VT) |
20 |
CHARGE PORT SENSE |
PHEV |
| 3 |
HYB53 (OG) |
10 |
HIGH VOLTAGE (+) |
PHEV |
| 4 |
HYB54 (OG) |
10 |
HIGH VOLTAGE (-) |
PHEV |
| 5 |
CYB55 (YE-GY) |
20 |
CHARGE PORT SENSE |
PHEV |
| 6 |
* |
* |
Not Used |
|
